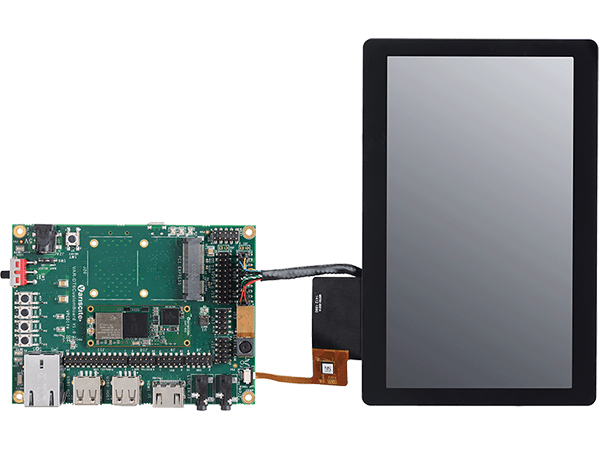

DART-MX6 Evaluation Kits

I development kit e starter kit DART-MX6 possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: i kit forniscono un’ottima indicazione delle funzioni di connettività di DART-MX6 e della sua performance.

    Specifiche

    Starter Kit Starter Kit Development Kit Development Kit

    Included SOM

    DART-MX6

    DART-MX6

    Included Carrier Board

    VAR-DT6CustomBoard

    VAR-DT6CustomBoard

    Display

    7″ WVGA

    Touch Panel

    Capacitive

    Micro-USB Debug Cable

    v

    v

    Ethernet Cable

    v

    5V Power Supply

    v

    Antenna

    v

    v

    Boot/Rescue SD Cards

    v

    v

    Carrier Board Design Package

    v

    v

    Camera Module

    Optional – VCAM-OV5640

    (Optional – VCAM-OV5640

    Part number

    VAR-STK-DT6

    VAR-DVK-DT6

    DART-MX6

    System on Module

    DART-MX6

    CPU Name

    NXP i.MX6

    CPU Type

    Cortex-A9

    CPU Cores

    4

    CPU Clock

    800 MHz

    RAM

    1024 MB

    eMMC

    8 GB

    Ethernet

    Ethernet PHY

    Wi-Fi

    Certified Wi-Fi 802.11 b/g/n + MIMO

    Bluetooth

    Bluetooth 5.1 + CSA2 support / BLE

    Audio codec

    Yes

    OS support

    Linux / Android

    Temperature

    -20 to 85°C

    Part number

    DART-MX6Q_800C_1024R_8G_A…

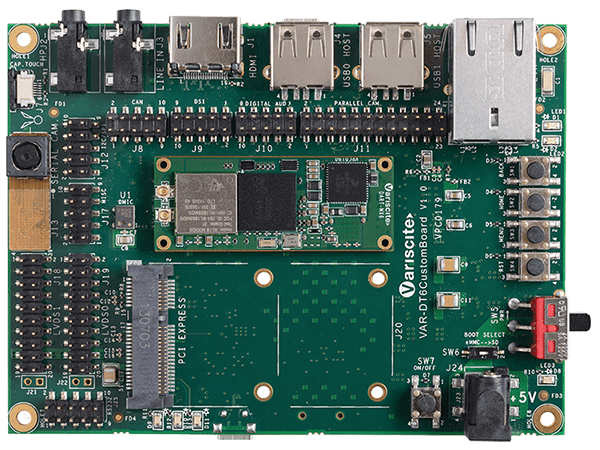

    VAR-DT6CustomBoard

    Carrier Board

    VAR-DT6CustomBoard

    B2B socket

    Supporting the DART-MX6

    LVDS

    3 pair 18-bit, 4 pair 24-bit

    HDMI

    1.4

    Capacitive touch panel

    Capacitive touch panel, (6-pin FFC/FPC)

    Headphone

    3.5 mm connector

    Line – in

    3.5 mm connector

    Digital microphone

    on-board

    Camera

    Serial/MIPI CMOS sensor interface

    SD-CARD

    uSD Card Socket

    USB Host

    1 port, Type A connector

    USB OTG

    Type Micro AB connector, Type A connector

    VAR-DT6 Evaluation Kits Block Diagram Diagram

    VAR-[DVK / STK]-DT6_[x]O

    STK

    Starter kit

    DVK

    Development kit

    [x]O

    L: Linux, A: Android
