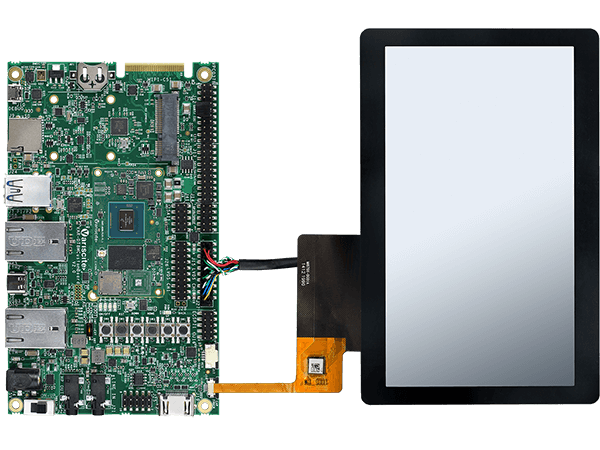

DART-MX8M-PLUS Evaluation Kits

Name: Variscite
Address: 7222 Hidden Valley Cove S, Cottage Grove, MN 55016, United States
Telephone: T: +972 (9) 9562910

Ordina online

I development kit e starter kit DART-MX8M-PLUS possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: i kit forniscono un’ottima indicazione delle funzioni di connettività di DART-MX8M-PLUS e della sua performance.

Specifiche

	Starter Kit	Development Kit
Included SOM	DART-MX8M-PLUS	DART-MX8M-PLUS
Included Carrier Board	VAR-DT8MCustomBoard	VAR-DT8MCustomBoard
Display		7″ WVGA
Touch Panel		Capacitive
Micro-USB Debug Cable
Ethernet Cable
5V Power Supply
Antenna
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Camera Module	Optional – VCAM-5640S-DUO, VCAM-AR1335B, VCAM-AR0821B	Optional – VCAM-5640S-DUO, VCAM-AR1335B, VCAM-AR0821B
Part number	VAR-STK-DT8M-PLUS	VAR-DVK-DT8M-PLUS

DART-MX8M-PLUS
System on Module	DART-MX8M-PLUS
CPU Name	NXP i.MX8M Plus
CPU Type	Cortex™-A53
CPU Cores	4
CPU Clock	1.8 GHz
RAM	4 GB LPDDR4
eMMC	16 GB
AI/ML	AI/ML NPU acceleration 2.3 TOPS
Ethernet	10/100/1000 Mbps
Wi-Fi	Certified 802.11 ac/a/b/g/n
Bluetooth	5.2 / BLE
HDMI	V2.0a up to 4Kp30
LVDS	18-bit / 24-bit
Audio codec	Yes
OS support	Linux / Android
Temperature	0 to 70°C
Part number	DART-MX8MPQ_1800C_4096R_1…

Altre info

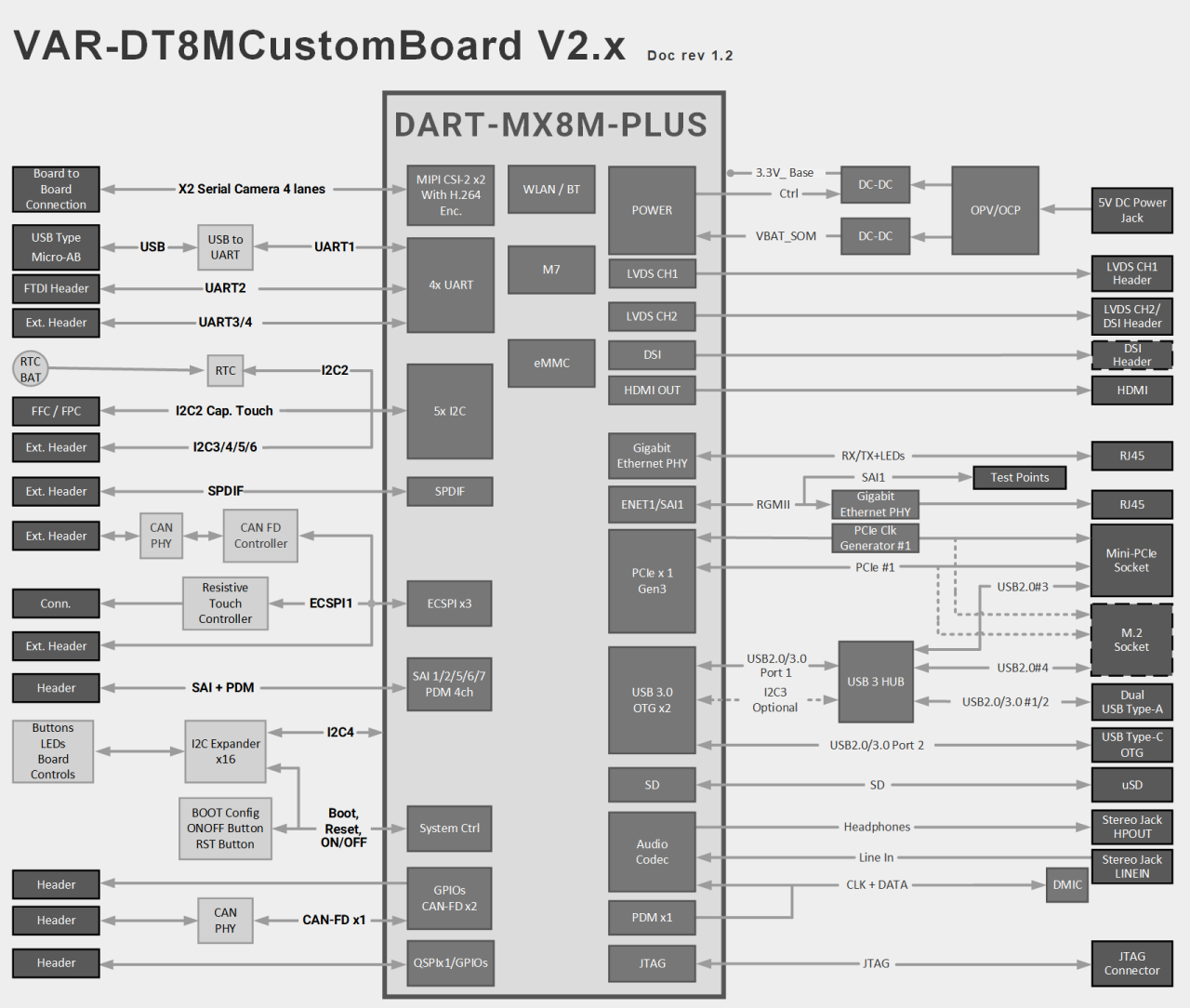

VAR-DT8MCustomBoard
Carrier Board	VAR-DT8MCustomBoard
B2B socket	Supporting the DART-MX8M-PLUS
HDMI	2.0a
LVDS	18-bit / 24-bit
DP	1.3
Backlight Driver	PWM Control
Resistive touch panel	4-wire touch panel (4-pin FFC/FPC)
Capacitive touch panel	Capacitive touch panel (6-pin FFC/FPC)
Headphone	3.5 mm connector
Line – in	3.5 mm connector
Digital microphone	on-board
PCI-Express	mini-PCIe connector
SD-CARD	SD Card Socket
CAN Bus	CAN/CAN-FD (Flexible Data-Rate)
Ethernet	2x 10/100/1000 Mbps, RJ45
