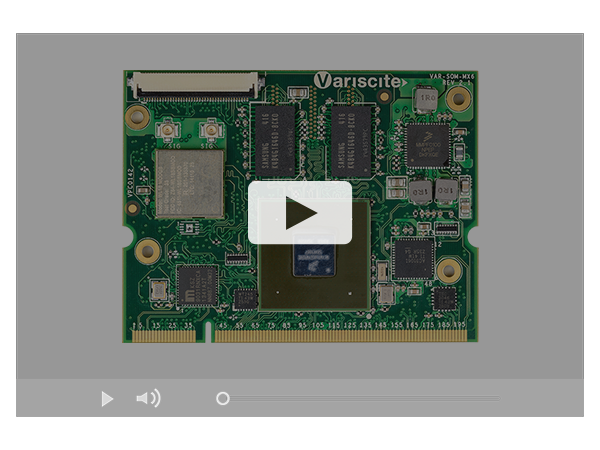

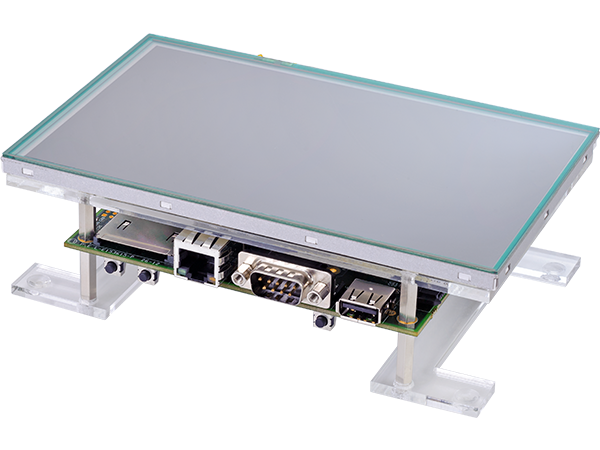

VAR-SOM-MX6 Evaluation Kits

Il VAR-SOM-MX6 può servire da piattaforma completa di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: il development kit VAR-SOM-MX6 fornisce un’ottima indicazione delle funzioni di connettività di VAR-SOM-MX6 e della sua performance.

  • iso 13485:2016
  • iso 9001:2015
  • iso 14001:2015

Specifiche

Starter KitStarter KitDevelopment Kit Development Kit

Included SOM

VAR-SOM-MX6 SOM

VAR-SOM-MX6 SOM

Included Carrier Board

VAR-MX6CustomBoard

VAR-MX6CustomBoard

Display

7″ WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable

v

v

Ethernet Cable

v

12V Power Supply

v

Antenna

v

v

Boot/Rescue SD Cards

v

v

Carrier Board Design Package

v

v

Documentation and Sources DVD

v

v

Camera Module

Optional – i.MX6 Camera board

Optional – i.MX6 Camera board

Part number

VAR-STK-MX6_V2

VAR-DVK-MX6_V2-PRO

VAR-SOM-MX6 SOM

System on Module

VAR-SOM-MX6

CPU Name

NXP i.MX6

CPU Type

Cortex-A9

CPU Cores

4

CPU Clock

1000 GHz

RAM

1024 MB

NAND Flash

512 MB SLC NAND

eMMC

8 GB

Ethernet

Ethernet PHY

Wi-Fi

Certified Wi-Fi 802.11 b/g/n

Bluetooth

Bluetooth 4.1 + CSA2 support/BLE

Audio codec

Yes

Touch panel

4-wire Touch

Local Bus

 Local Bus / JTAG expansion connector

OS support

Linux / Android

Temperature

0 to 70°C

Part number

VAR_SOM_MX6Q_V2_1000C_102…

VAR-MX6CustomBoard

Carrier Board

VAR-MX6CustomBoard

SODIMM 200 socket

Supporting the VAR-SOM-MX6

RGB

18-bit RGB parallel display interface (40-pin FFC/FPC connector for 7″ WVGA LCD)

LVDS

18-bit / 24-bit

HDMI

1.4

Backlight Driver

Yes

Resistive

4-wire touch panel, 4-pin FFC/FPC

Capacitive

Capacitive touch panel, (10-pin FFC/FPC)

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

SD-CARD

SD Card Socket

VAR-SOM-MX6 Evaluation Kits Block Diagram Diagram

VAR-STK-MX6_V2_[x]O

[x]O

L: Linux, A: Android

VAR-DVK-MX6_V2_PRO_[x]O

[x]O

L: Linux, A: Android
