VAR-SOM-MX7 Evaluation Kits

Ordina online arrow

I development kit e starter kit VAR-SOM-MX7 possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: i kit forniscono un’ottima indicazione delle funzioni di connettività di VAR-SOM-MX7 e della sua performance.

Specifiche

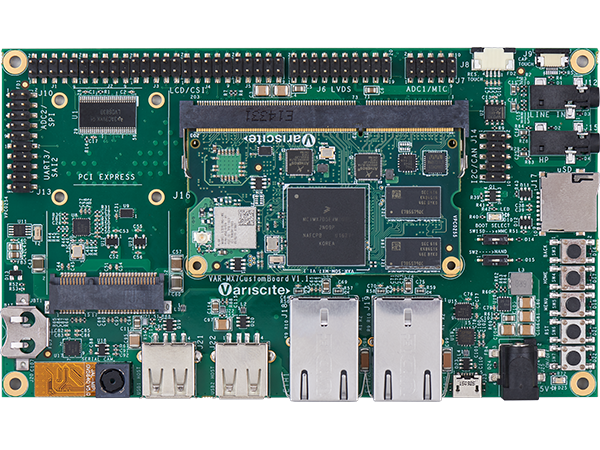

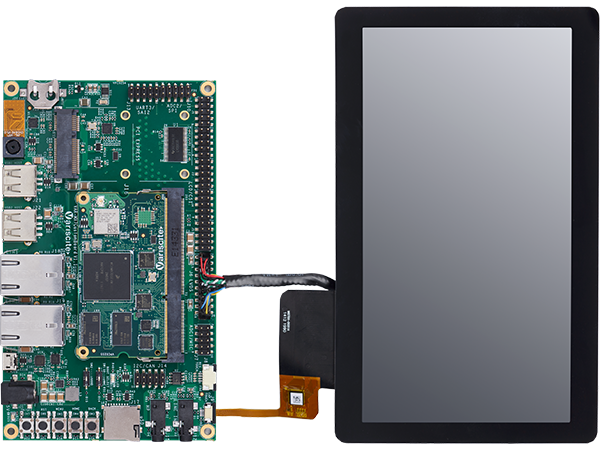

VAR-SOM-MX7-SK Starter KitVAR-SOM-MX7-DVK Development Kit

Included SOM

VAR-SOM-MX7

VAR-SOM-MX7

Included Carrier Board

VAR-MX7CustomBoard

VAR-MX7CustomBoard

Display

7″ WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable

v

v

Ethernet Cable

v

5V Power Supply

v

Antenna

v

v

Boot/Rescue SD Cards

v

v

Carrier Board Design Package

v

v

Camera Module

Optional – VCAM-OV5640

Optional – VCAM-OV5640

Part number

VAR-STK-MX7

VAR-DVK-MX7

VAR-SOM-MX7 with 8GB eMMC & Wi-Fi 802.11b/g/n VAR-SOM-MX7 with 8GB eMMC, Wi-Fi 802.11ac/a/b/g/n & Industrial temperature range

System on Module

VAR-SOM-MX7

VAR-SOM-MX7

CPU Name

NXP i.MX7

NXP i.MX7

CPU Type

Cortex-A7

Cortex-A7

CPU Cores

2 Cores

2 Cores

CPU Clock

1 GHz

1 GHz

Real-time processor

200 MHz ARM Cortex-M4

200 MHz ARM Cortex-M4

RAM

1024 MB

1024 MB

NAND Flash

–

–

eMMC

8 GB

8 GB

Ethernet

2 Ethernet PHY

2 Ethernet PHY

Wi-Fi

Certified Wi-Fi 802.11 b/g/n

Certified Wi-Fi 802.11 ac/a/b/g/n

Bluetooth

Bluetooth 5.1/ BLE

Bluetooth 5.2/ BLE

Audio codec

Yes

Yes

Touch Panel

Resistive Touch Panel

Resistive Touch Panel

OS support

Linux

Linux

Temperature

0 to 70°C

-20 to 85°C

Part number

VAR-SOM-MX7_1024R_8N_AC_E…

VAR-SOM-MX7-5G_1024R_8N_A…

VAR-MX7CustomBoard

Carrier Board

VAR-MX7CustomBoard

B2B socket

Supporting the VAR-SOM-MX7

Parallel RGB

24 bit

LVDS

3 pair 18-bit

DSI

Header

Capacitive

Capacitive touch panel, (6-pin FFC/FPC)

Resistive

FFC/FPC + Header

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Analog microphone

Header

Camera

MIPI CSI-2 Sensor interface, Parallel camera header

SD-CARD

uSD Card Socket

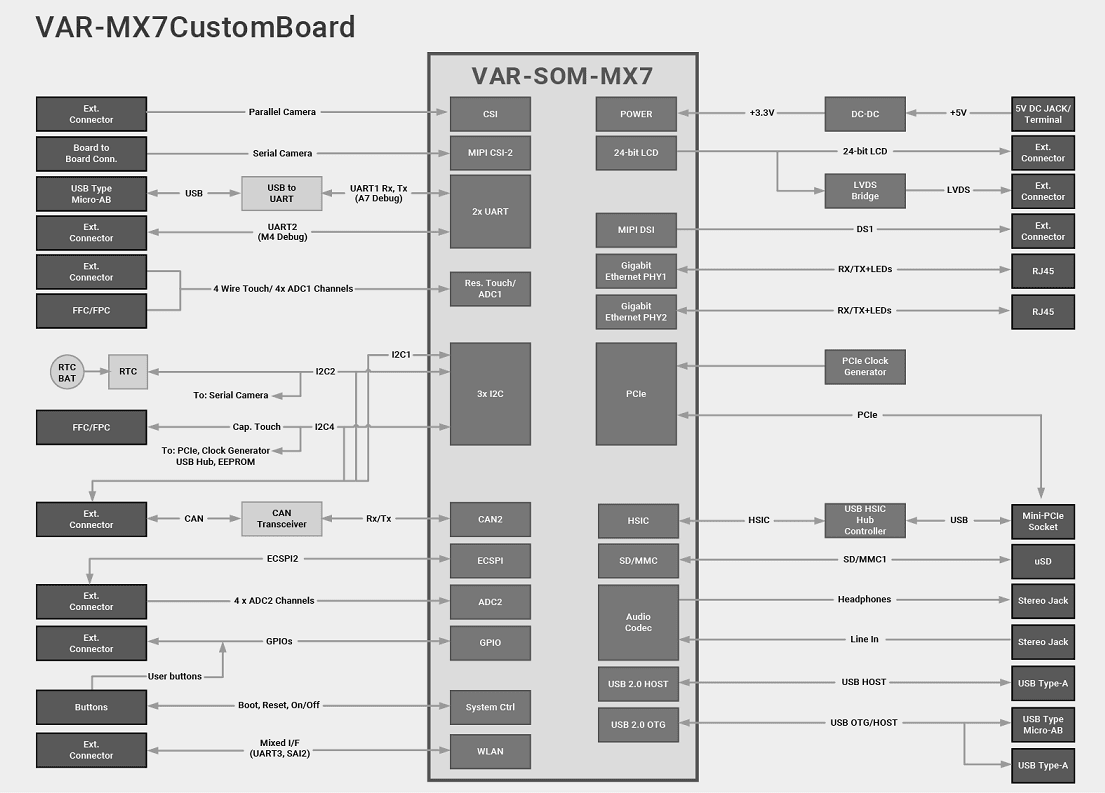

VAR-MX7 Evaluation Kits Block Diagram Diagram

VAR-[DVK / STK]-MX7_[x]O

VAR-[STK / DVK]-MX7-E_LO

Including VAR-SOM-MX7 1024R_8N_AC_EC1_EC2_TP_WB_CT

VAR-[STK / DVK]-MX7-5G-E_LO

Including VAR-SOM-MX7 5G_1024R_8N_AC_EC1_EC2_TP_WBD_IT

STK/DVK

STK: Starter kit
DVK: Development kit
