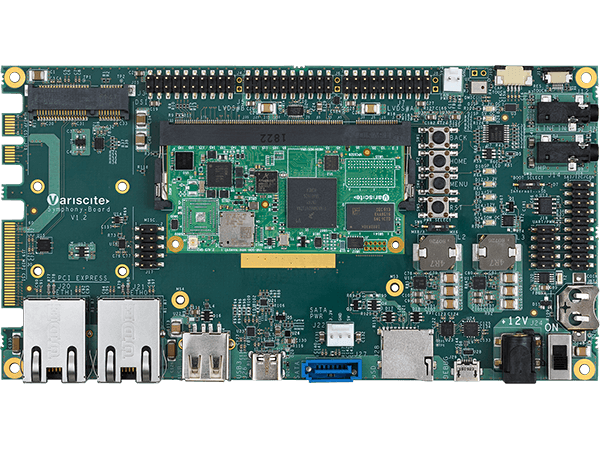

VAR-SOM-MX8M-NANO Evaluation Kits

I development kit e starter kit VAR-SOM-MX8M-NANO possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni. I kit forniscono un’ottima indicazione delle funzioni di connettività di VAR-SOM-MX8M-NANO e della sua performance.

  • iso 13485:2016
  • iso 9001:2015
  • iso 14001:2015

Specifiche

VAR-SOM-MX8M- Starter Kit Starter KitVAR-SOM-MX8M-Development Kit Development Kit

Included SOM

VAR-SOM-MX8M-NANO

VAR-SOM-MX8M-NANO

Included Carrier Board

Symphony-Board

Symphony-Board

Display

7″ WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable

v

v

Ethernet Cable

v

12V Power Supply

v

Antenna

v

v

Boot/Rescue SD Cards

v

v

Carrier Board Design Package

v

v

Camera Module

Optional – i.MX8 Serial Camera Board

Optional – i.MX8 Serial Camera Board

Part number

VAR-STK-VS8M-NANO

VAR-DVK-VS8M-NANO

VAR-SOM-MX8M-NANO

System on Module

VAR-SOM-MX8M-NANO

CPU Name

NXP i.MX8M Nano

CPU Type

Cortex™-A53

CPU Cores

4

CPU Clock

1.5GHz

RAM

1 GB DDR4

eMMC

16 GB

Ethernet

10/100/1000 Mbps

Wi-Fi

Certified dual-band 802.11 ac/a/b/g/n

Bluetooth

4.2 / BLE

LVDS

18-bit / 24-bit

Audio codec

Yes

OS support

Linux / Android

Temperature

0 to 70°C

CAN Bus

x1

Part number

VAR-SOM-MX8MNQ_1500C_1024…

Symphony-Board

Carrier Board

Symphony-Board

SO-DIMM200

Supporting the VAR-SOM-MX8M-NANO

LVDS

2x Header, 18-bit / 24-bit

Backlight Driver

PWM Control

Capacitive touch panel

Capacitive touch panel (6-pin FFC/FPC)

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

SD-CARD

SD Card Socket

CAN Bus

x1

Ethernet

10/100/1000 Mbps, RJ45

Symphony-Board With VAR-SOM-MX8M-NANO Block Diagram Diagram

VAR-[STK / DVK]-VS8M-NANO_[5G]_[x]O

STK/DVK

STK: Starter kit
DVK: Development kit

[5G]

5G: Built-in certified dual-band Wi-Fi 802.11 ac/a/b/g/n + Bluetooth 4.2/BLE

[x]O

L: Linux, A: Android
