VAR-SOM-MX8X Evaluation Kits

Ordina online

I development kit e starter kit VAR-SOM-MX8X possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni. I kit forniscono un’ottima indicazione delle funzioni di connettività di VAR-SOM-MX8X e della sua performance.

Specifiche

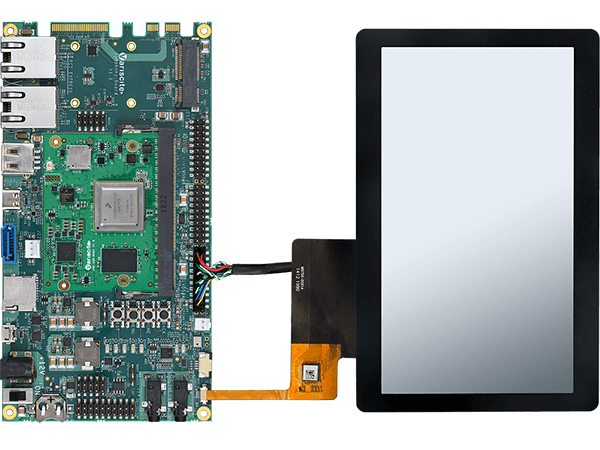

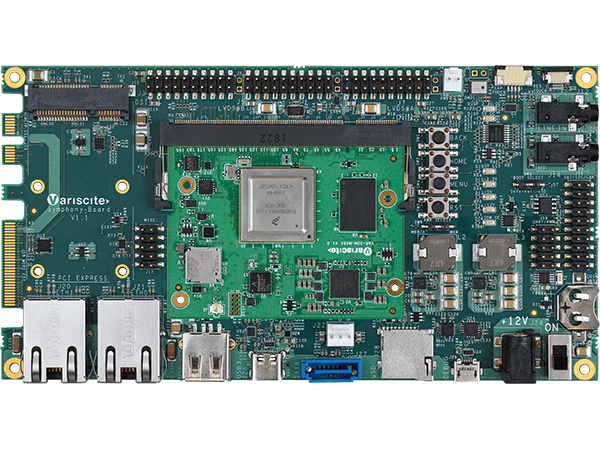

	Starter Kit	Development Kit
Included SOM	VAR-SOM-MX8X	VAR-SOM-MX8X
Included Carrier Board	Symphony-Board	Symphony-Board
Display		7″ WVGA
Touch Panel		Capacitive
Micro-USB Debug Cable
Ethernet Cable
12V Power Supply
Antenna
Heat Sink
Boot/Rescue SD Cards
Carrier Board Design Package
Camera Module	Optional – VCAM-5640PA, VCAM-5640S-1ST	Optional – VCAM-5640PA, VCAM-5640S-1ST
Part number	VAR-STK-MX8X	VAR-DVK-MX8X

VAR-SOM-MX8X
System on Module	VAR-SOM-MX8X
CPU Name	NXP iMX8X
CPU Type	Cortex-A35
CPU Cores	4
CPU Clock	1.2 GHz
RAM	2 GB LPDDR4
eMMC	16 GB
Ethernet	2x GbE PHY
Wi-Fi	Certified 802.11 ac/a/b/g/n
Bluetooth	5.2 / BLE
Audio codec	Yes
OS support	Linux / Android
Temperature	-25 to 85°C
Part number	VAR-SOM-MX8XQP_1200C_2048…

Altre info

Symphony-Board
Carrier Board	Symphony-Board
SO-DIMM200	Supporting the VAR-SOM-MX8X
LVDS	2x Header, 18-bit / 24-bit
HDMI	2.0a via display extension board (not included)
DP	1.3 via display extension board (not included)
eDP	1.4 via display extension board (not included)
DSI	Header
Backlight Driver	PWM Control
Resistive touch panel	4-wire touch panel (4-pin FFC/FPC)
Capacitive touch panel	Capacitive touch panel (6-pin FFC/FPC)
Headphone	3.5 mm connector
Line – in	3.5 mm connector
Digital microphone	on-board
PCI-Express	mini-PCIe connector
