VAR-SOM-OM37 Evaluation Kit

Il VAR-DVK-OM37 può servire da piattaforma completa di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: il DVK fornisce un’ottima indicazione delle funzioni di connettività di VAR-SOM-OM37 e della sua performance.
  • iso 9001:2015
  • iso 14001:2015
  • iso 13485:2016
  • platinum partner nxp

Specifiche

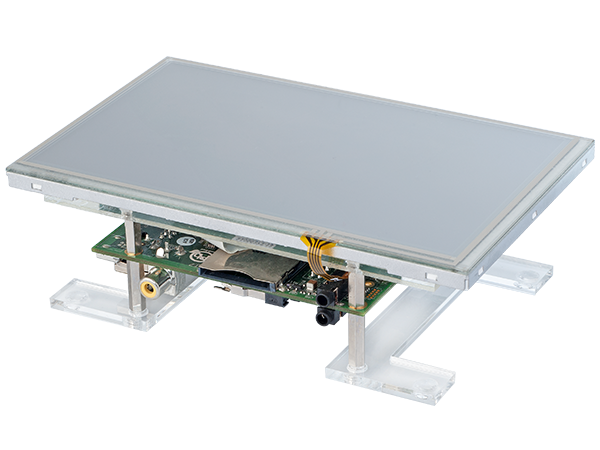

VAR-SOM-OM37 Development Kit Development Kit

Included SOM

VAR-SOM-OM37

Included Carrier Board

VAR-OM37CustomBoard

Display

7″ WVGA LCD

Touch Panel

resistive/capacitive

Cables and Accessories

v

Ethernet Cable

v

RS232 Debug cable

v

12V Power supply

v

USB Client cable

v

Boot/Rescue SD Cards

v

Carrier Board Design Package

v

Documentation and Sources DVD

v

Part number

VAR-DVK-OM37

VAR-SOM-OM37

System on Module

VAR-SOM-OM37

CPU Name

Texas Instruments DM3730 / AM3703

CPU Type

Cortex-A8

CPU Cores

1 Core

CPU Clock

1000 MHz

RAM

256 MB

NAND Flash

512 MB SLC NAND

Ethernet

 10/100 Mbps

Touch panel

4-wire Touch

USB

USB 2.0 Host controller

OS support

Linux / Android / Windows Embedded Compact 7 installed / Windows CE 6 installed

Temperature

0 to 70°C

Part number

VAR_SOM_OM3730_1000C_256R…

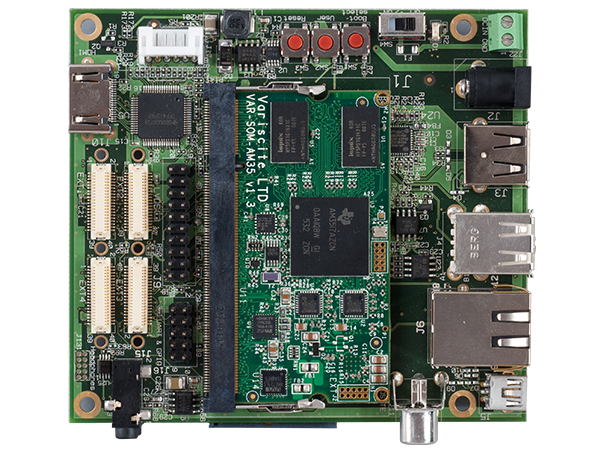

VAR-OM37CustomBoard

Carrier Board

VAR-OM37CustomBoard

SODIMM 200 socket

Populated with the VAR-SOM-OM37

RGB

18-bit RGB parallel display interface (40-pin FFC/FPC connector for 7″ WVGA LCD)

LVDS

18-bit

Composite

RCA connector

HDMI

DVI

Resistive

4-wire touch panel, 4-pin FFC/FPC

Capacitive

Capacitive touch panel, header

Line – out

3.5 mm connector

Line – in

3.5 mm connector

SD-CARD

SD Card Socket

USB Host

3 ports, Type A connector

VAR-DVK-OM37_[X]O

VAR-DVK-OM37_LO

VAR-SOM-OM37 evaluation kit with Linux installed

VAR-DVK-OM37_CE7

VAR-SOM-OM37 evaluation kit with Windows Embedded Compact 7 installed

VAR-DVK-OM37_CO

VAR-SOM-OM37 evaluation kit with Windows CE 6 installed

VAR-DVK-OM37_AO

VAR-SOM-OM37 evaluation kit with Android installed

Documentazione

Reference Manuals

Board Schematics
