VAR-SOM-SOLO / DUAL Evaluation Kits

I development kit e starter kit VAR-SOM-SOLO/DUAL possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni. I kit forniscono un’ottima indicazione delle funzioni di connettività di VAR-SOM-SOLO / DUAL e della sua performance.

  • iso 13485:2016
  • iso 9001:2015
  • iso 14001:2015

Specifiche

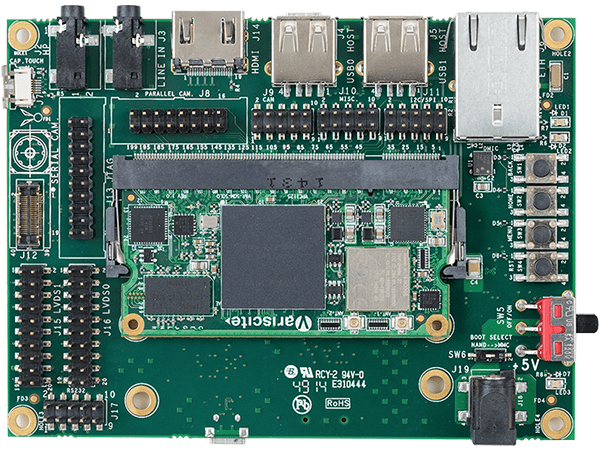

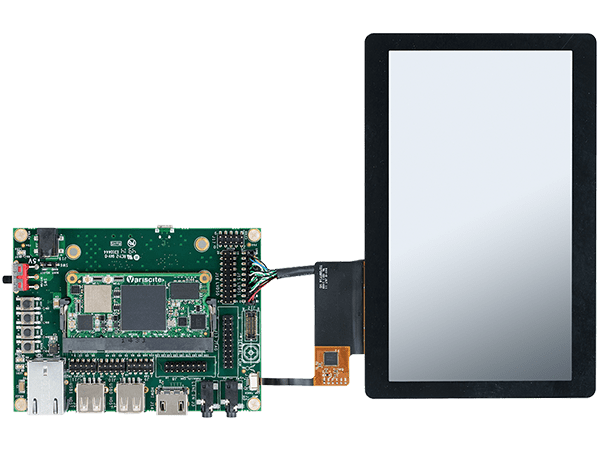

VAR-SOM-SOLO-DUAL-SK Starter KitVAR-SOM-SOLO-DUAL-DVK Development Kit

Included SOM

VAR-SOM-SOLO / DUAL

VAR-SOM-SOLO / DUAL

Included Carrier Board

VAR-SOLOCustomBoard

VAR-SOLOCustomBoard

Display

7″ WVGA

Touch Panel

Capacitive

Micro-USB Debug Cable

v

v

Ethernet Cable

v

5V Power Supply

v

Antenna

v

v

Boot/Rescue SD Cards

v

v

Carrier Board Design Package

v

v

Camera Module

Optional – VCAM-OV5640-V5

Optional – VCAM-OV5640-V5

Part number

VAR-STK-SOLO / VAR-STK-DUAL

VAR-DVK-SOLO / VAR-DVK-DUAL

VAR-SOM-SOLOVAR-SOM-DUAL

System on Module

VAR-SOM-SOLO

VAR-SOM-DUAL

CPU Name

NXP i.MX6

NXP i.MX6

CPU Type

Cortex-A9

Cortex-A9

CPU Cores

1

2

CPU Clock

1 GHz

1 GHz

RAM

1024 MB

1024 MB

NAND Flash

512 MB SLC NAND

512 MB SLC NAND

eMMC

8 GB

8 GB

Ethernet

Ethernet PHY

Ethernet PHY

Wi-Fi

Certified Wi-Fi 802.11 b/g/n

Certified Wi-Fi 802.11 b/g/n

Bluetooth

Bluetooth 4.1 + CSA2 support / BLE

Bluetooth 4.1 + CSA2 support / BLE

Audio codec

Yes

Yes

Touch panel

4-wire Touch

4-wire Touch

OS support

Linux / Android

Linux / Android

Temperature

0 to 70°C

0 to 70°C

Part number

VAR_SOM_SOLO_1000C_1024R_…

VAR_SOM_DUAL_1000C_1024R_…

VAR-SOLOCustomBoard

Carrier Board

VAR-SOLOCustomBoard

SODIMM 200 socket

Supporting the VAR-SOM-SOLO/DUAL

LVDS

3 pair 18-bit, 4 pair 24-bit

HDMI

1.4

Resistive

4-wire touch panel, (4-pin FFC/FPC)

Capacitive

Capacitive touch panel, (6-pin FFC/FPC)

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

Camera

Serial/MIPI CMOS sensor interface

SD-CARD

uSD Card Socket

USB Host

1 port, Type A connector

VAR-SOLO Evaluation Kits Block Diagram Diagram

VAR-[XXX]-[SOLO/DUAL]_[x]O

STK

Starter kit

DVK

Development kit

[x]O

L: Linux, A: Android
