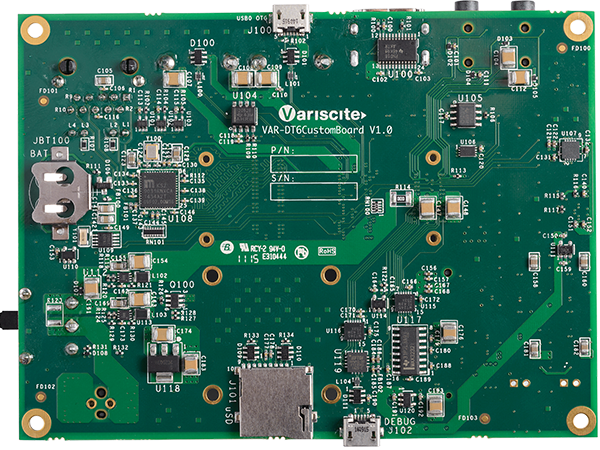

VAR-DT6CustomBoard

Il VAR-DT6CustomBoard Single Board Computer (SBC) può servire sia da piattaforma di sviluppo che da prodotto finale. Congiuntamente con DART-MX6, offre una connettività ancora più ampia con interfacce aggiuntive, come Gigabit Ethernet PHY, LVDS ecc.
  • iso 13485:2016
  • iso 9001:2015
  • iso 14001:2015

Specifiche

B2B socket

Supporting the DART-MX6 (not included)

Display

LVDS

3 pair 18-bit, 4 pair 24-bit

HDMI

1.4

Audio

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

Touch Panel

Capacitive

Capacitive touch panel, (6-pin FFC/FPC)

Camera

Camera

Serial/MIPI CMOS sensor interface

USB

USB Host

1 port, Type A connector

USB OTG

Type Micro AB connector, Type A connector

Expansions

SD-CARD

uSD Card Socket

Serial Ports

RS232

Header

Debug port

Micro USB (Serial <-> USB)

CAN Bus

x1

Expansion Connectors

PCI Express

JTAG

SPI, I2C

UART, PWM, CLKO2, DMIC

Ethernet

10/100/1000 Mbps, RJ45

Mechanical Specifications

Dimensions (W x L x H)

8.7 cm x 11.8 cm x 2 cm

Electronic Specifications

Supply voltage

5V DC input, 2.0 mm DC jack

RTC

Coin RTC Backup battery socket (CR1225)

VAR-DT6 Evaluation Kits Block Diagram Diagram

Documentazione

Reference Manuals

Board Schematics

Mechanic Design files
