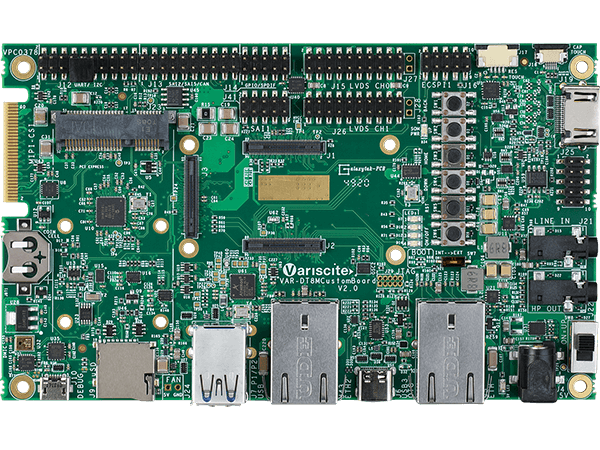

VAR-DT8MCustomBoard

VAR-DT8MCustomBoard Computer (SBC) può servire sia da piattaforma di sviluppo che da prodotto finale. Congiuntamente con DART-MX8M / DART-MX8M-MINI, DART-MX8M-PLUS offre una connettività ancora più ampia con interfacce aggiuntive, come Gigabit Ethernet PHY, interfacce per fotocamera, LVDS, PCIe, RTC ecc.

    Specifiche

    B2B socket

    Supporting the DART-MX8M / DART-MX8M-MINI / DART-MX8M-PLUS (not included)

    Display

    LVDS

    18-bit / 24-bit

    HDMI

    2.0a (DART-MX8M and DART-MX8M-PLUS only)

    DP

    1.3 (DART-MX8M only)

    Backlight Driver

    PWM Control

    Audio

    Headphone

    3.5 mm connector

    Line – in

    3.5 mm connector

    Digital microphone

    on-board

    Touch Panel

    Resistive

    4-wire touch panel (4-pin FFC/FPC)

    Capacitive

    Capacitive touch panel (6-pin FFC/FPC)

    Camera Interface

    Serial Camera

    Interfaces with the VCAM-5640S Camera Board

    USB

    USB Host

    DART-MX8M: 2 ports, Type A connector, USB3.0/2.0.
    DART-MX8M-MINI: 2 ports, Type A connector, USB2.0.

    USB OTG

    DART-MX8M: Type C connector, USB3.0/2.0.
    DART-MX8M-MINI: Type C connector, USB2.0.
    DART-MX8M-PLUS: 2x USB3.0 OTG.

    Expansions

    PCI-Express

    DART-MX8M: mini-PCIe connector x2
    DART-MX8M-MINI: mini-PCIe connector x1

    SD-CARD

    SD Card Socket

    Serial Ports

    RS232 (1)

    USB-SERIAL bridge, Micro USB type AB

    RS232 (2)

    FTDI Header (Debug)

    RS232 (3), (4)

    Header

    Expansion Connectors

    QSPI

    UART

    SPI, I2C

    GPIOs

    JTAG

    SAI

    SPDIF

    Ethernet

    10/100/1000 Mbps, RJ45
    DART-MX8M-PLUS: 2x 10/100/1000 Mbps

    Mechanical Specifications

    Dimensions (W x L x H)

    15 cm x 9 cm x 1.5 cm

    Electronic Specifications

    Supply voltage

    5V DC input, 2.5 mm DC jack

    RTC

    Coin RTC Backup battery socket (CR1225)

    With DART-MX8M
    VAR-DT8MCustomBoard Block Diagram Diagram
    With DART-MX8M-MINI

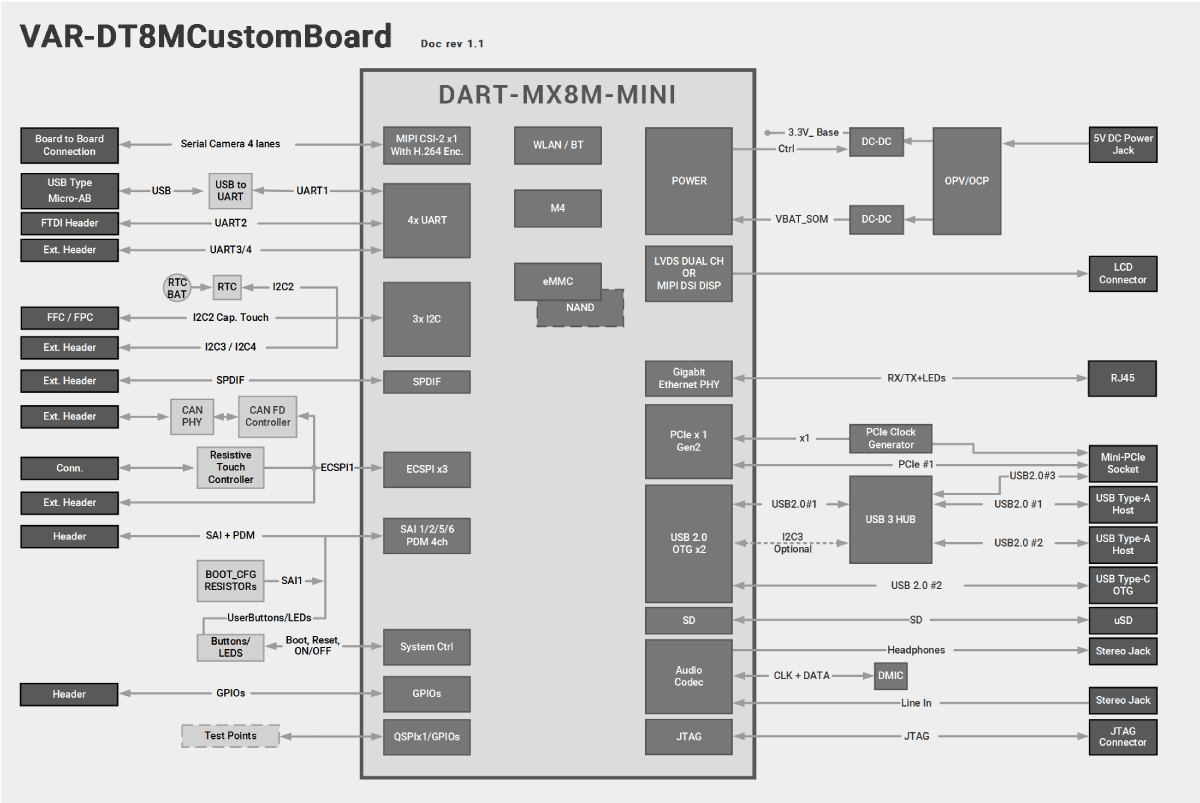

    DART-MX8M-MINI Evaluation Kits Block Diagram Diagram
    With DART-MX8M-PLUS
    VAR-DT8MCustomBoard-with-DART-MX8M-PLUS-Block-Diagram Diagram
    VAR-DT8MCustomBoard Block Diagram Diagram
    DART-MX8M-MINI Evaluation Kits Block Diagram Diagram
    VAR-DT8MCustomBoard-with-DART-MX8M-PLUS-Block-Diagram Diagram

    Documentazione

    Reference Manuals

    Board Schematics

    Mechanic Design files
