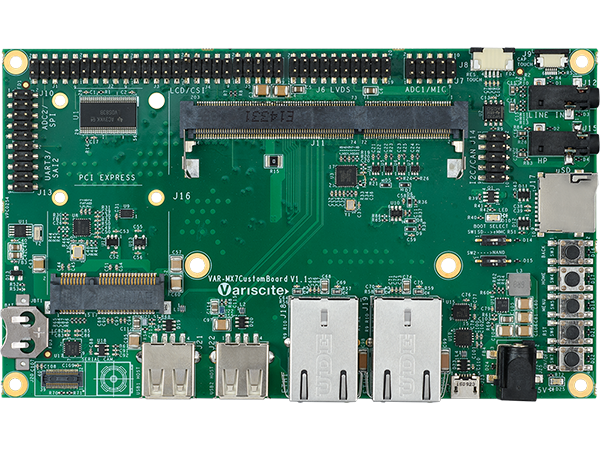

VAR-MX7CustomBoard

Il VAR-MX7CustomBoard Single Board Computer (SBC) può servire sia da piattaforma di sviluppo che da prodotto finale. Congiuntamente con VAR-SOM-MX7, offre una connettività ancora più ampia con interfacce aggiuntive, come Dual Gigabit Ethernet, RGB, LVDS ecc.

Specifiche

B2B socket

Supporting the VAR-SOM-MX7 (not included)

Display

Parallel RGB

24 bit

LVDS

3 pair 18-bit

DSI

Header

Audio

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Analog microphone

Header

Touch Panel

Capacitive

Capacitive touch panel (6-pin FFC/FPC)

Resistive

FFC/FPC + Header

Camera

Camera

MIPI CSI-2 Sensor interface, Parallel camera header

USB

USB Host

1 port, Type A connector

USB OTG

Type Micro AB connector, Type A connector

PCIe

mini-PCIe connector

Expansions

SD-CARD

uSD Card Socket

Serial Ports

Debug port

Micro USB (Serial <-> USB)

CAN Bus

x1

ADC

2x Header

Expansion Connectors

SAI

SPI, I2C, UART

Ethernet

2x 10/100/1000 Mbps, RJ45

Mechanical Specifications

Dimensions (W x L x H)

8.7 cm x 14.8 cm x 2 cm

Electronic Specifications

Supply voltage

5V DC input, 2.0 mm DC jack

RTC

Coin RTC Backup battery socket (CR1225)

VAR-MX7 Evaluation Kits Block Diagram Diagram

Documentazione

Reference Manuals

Board Schematics

Mechanic Design files
