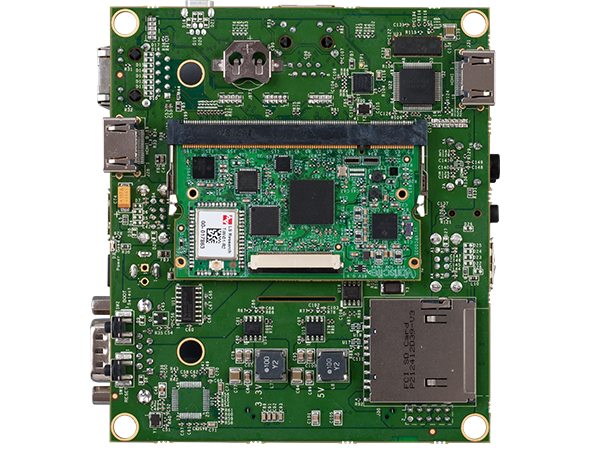

VAR-OM44CustomBoard

VAR-OM44CustomBoard serve da prodotto finale. Può essere assemblato conformemente alle specifiche del cliente al fine di massimizzare l’ottimizzazione del prezzo.
  • iso 9001:2015
  • iso 14001:2015
  • iso 13485:2016
  • platinum partner nxp

Specifiche

SODIMM 200 socket

Supporting the VAR-SOM-OM44 (not included)

Display

RGB

18-bit RGB parallel display interface (40-pin FFC/FPC connector for 7″ WVGA LCD)

LVDS

18-bit

HDMI

1.3a

Audio

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

Touch Panel

Resistive

4-wire touch panel, 4-pin FFC/FPC

Capacitive

Capacitive touch panel, (10-pin FFC/FPC)

Camera interfaces

Serial Camera

Interfaces with the VAR-EXT-CB401 Camera Board

Expansions

SD-CARD

SD Card Socket

USB

USB Host

4 ports, Type A connector

USB OTG

Type mini AB connector

Serial Ports

RS232 (1)

DV-9 male (DTE)

RS232 (2)

IDC10 Header (Debug)

RS485

Header

Expansion Connectors

GPMC – Local Bus interface

SD/MMC interface

SPI, I2C

UART

GPIOs

JTAG

Ethernet (1)

10/100/1000 Mbps, RJ45

Ethernet (2)

10/100, RJ45 (Debug)

Mechanical Specifications

Dimensions (W x L x H)

12 cm x 10.5 cm x 2.4 cm

Electronic Specifications

Supply voltage

7.5V -14V DC input, 2.5 mm DC jack

RTC

Coin RTC Backup battery socket (CR1225)

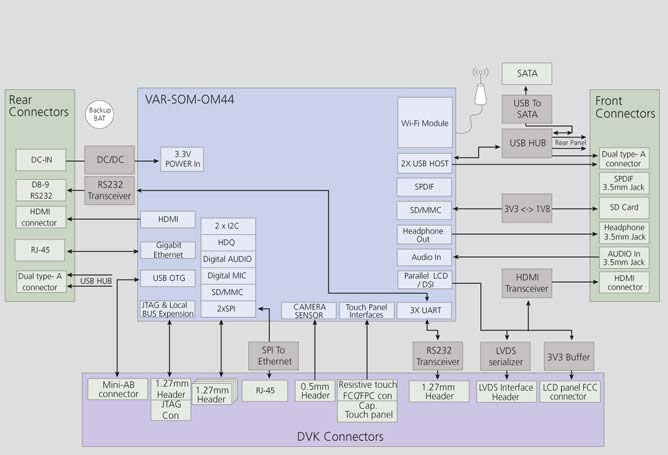

VAR-SOM-OM44 Evaluation Kits Block Diagram Diagram
