VAR-SD600CustomBoard

VAR-SD600CustomBoard Computer (SBC) può servire sia da piattaforma di sviluppo che da prodotto finale. Congiuntamente con VAR-SOM-SD600, offre una connettività ancora più ampia con interfacce aggiuntive, come Gigabit Ethernet, LVDS ecc.
  • iso 13485:2016
  • iso 9001:2015
  • iso 14001:2015

Specifiche

MXM 3.0 314 socket

Supporting the VAR-SOM-SD600 (not included)

Display

RGB

18-bit RGB parallel display interface (40-pin FFC/FPC connector for 7″ WVGA LCD)

LVDS

18-bit / 24-bit

HDMI

1.4a

Backlight Driver

Yes

Audio

Headphone

3.5 mm connector

Line – in

3.5 mm connector

Digital microphone

on-board

Touch Panel

Capacitive

Capacitive touch panel, (10-pin FFC/FPC)

Camera interfaces

Serial Camera

Interfaces with 2x OV5640 sensors

USB

USB Host

2 ports, Type A connector

USB OTG

Type mini AB connector

Expansions

SD-CARD

SD Card Socket

S-ATA

7 + 15, female connector

PCI-Express

mini-PCIe connector

Serial Ports

RS232 (1)

DV-9 male (DTE)

RS232 (2)

IDC10 Header (Debug)

Expansion Connectors

SD/MMC interface

SPI, I2C

UART

GPIOs

JTAG

Ethernet

10/100/1000 Mbps, RJ45

Mechanical Specifications

Dimensions (W x L x H)

12 cm x 10.5 cm x 2.4 cm

Electronic Specifications

Supply voltage

7.5V -14V DC input, 2.5 mm DC jack

RTC

Coin RTC Backup battery socket (CR1225)

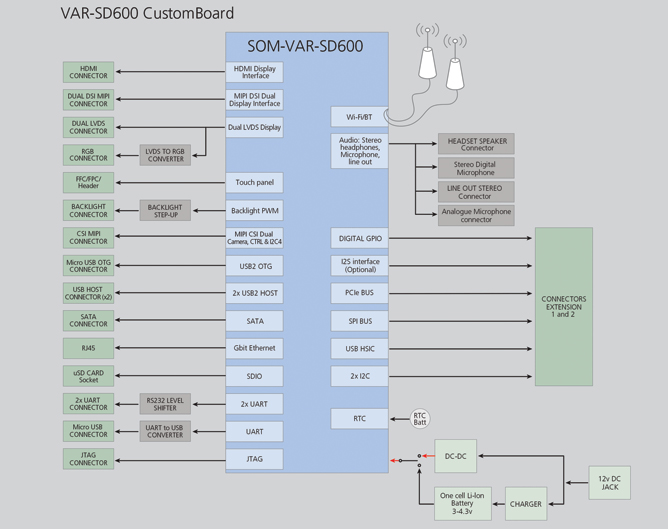

SD600CustomBoard BD Diagram
