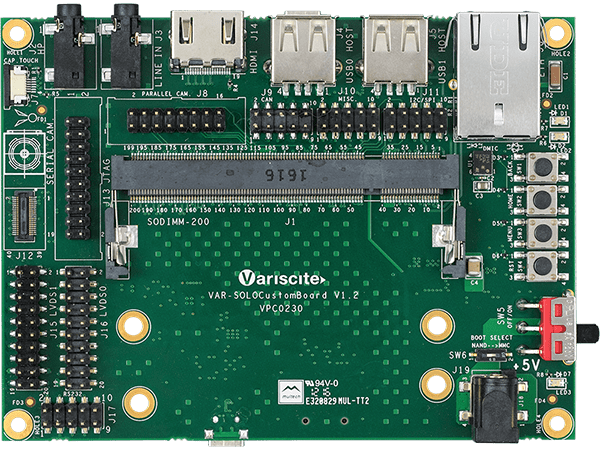

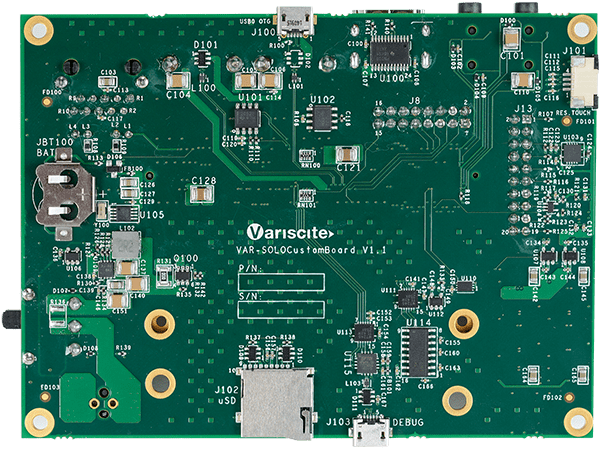

VAR-SOLOCustomBoard

SOLOCustomBoard Single Board Computer (SBC) può servire sia da piattaforma di sviluppo che da prodotto finale. Congiuntamente con VAR-SOM-SOLO/DUAL, offre una connettività ancora più ampia con interfacce aggiuntive, come Gigabit Ethernet PHY, LVDS ecc.

    Specifiche

    SODIMM 200 socket

    Supporting the VAR-SOM-SOLO/DUAL (not included)

    Display

    LVDS

    3 pair 18-bit, 4 pair 24-bit

    HDMI

    1.4

    Audio

    Headphone

    3.5 mm connector

    Line – in

    3.5 mm connector

    Digital microphone

    on-board

    Touch Panel

    Resistive

    4-wire touch panel, (4-pin FFC/FPC)

    Capacitive

    Capacitive touch panel, (6-pin FFC/FPC)

    Camera

    Camera

    Serial/MIPI CMOS sensor interface

    USB

    USB Host

    1 port, Type A connector

    USB OTG

    Type Micro AB connector, Type A connector

    Expansions

    SD-CARD

    uSD Card Socket

    Serial Ports

    RS232

    Header

    Debug port

    Micro USB (Serial <-> USB)

    CAN Bus

    x1

    Expansion Connectors

    JTAG

    SPI, I2C

    UART, PWM, CLKO2, DMIC

    Ethernet

    10/100/1000 Mbps, RJ45

    Mechanical Specifications

    Dimensions (W x L x H)

    8.7 cm x 11.8 cm x 2 cm

    Electronic Specifications

    Supply voltage

    5V DC input, 2.0 mm DC jack

    RTC

    Coin RTC Backup battery socket (CR1225)

    VAR-SOLO Evaluation Kits Block Diagram Diagram

    Documentazione

    Reference Manuals

    Board Schematics

    Mechanic Design files
