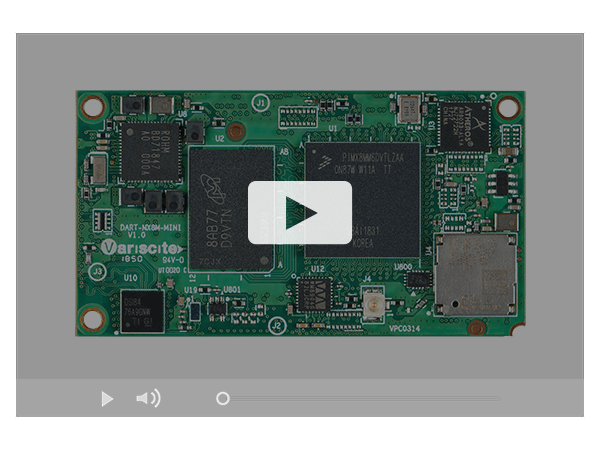

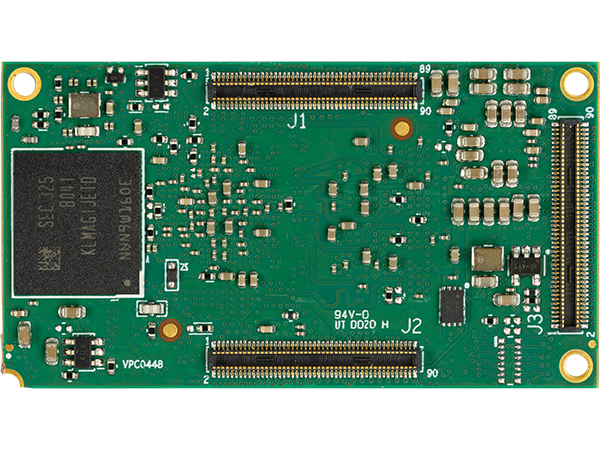

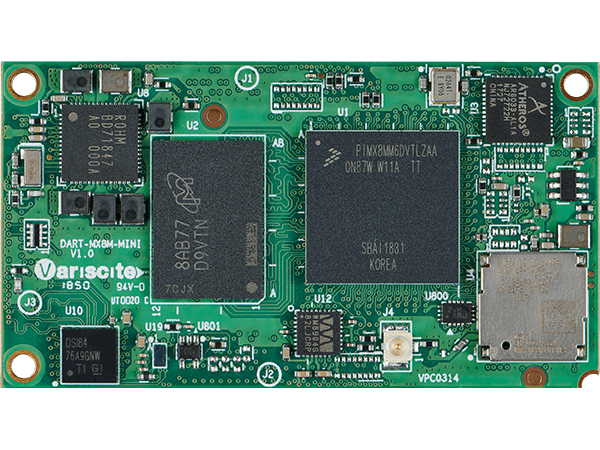

DART-MX8M-MINI :
NXP i.MX8M Mini

Starting from $53

Confezionato in un mini pacchetto da 55 x 30 mm, il System on Module / Computer on Module DART-MX8M-MINI basato su i.MX8M Mini di NXP con ARM Cortex-A53TM quad-core fino a 1,8 GHz più processore in tempo reale Cortex-M4™ da 400 MHz sfrutta la tecnologia avanzata di processo al silicio a basso consumo per fornire appunto un consumo energetico ottimizzato, sempre mantenendo una barra ad alte prestazioni.

Il DART-MX8M-MINI offre un’opzione scalabile pin2pin per DART-MX8M-PLUS e DART-MX8M con supporto integrato per l’accelerazione di codifica e decodifica video 1080p, grafica 2D e 3D, audio HQ e un’ampia gamma di opzioni di connettività come Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n certificato con BT/BLE 5.4 e 802.15.4 opzionale, Ethernet e USB.

Per il catalogo Pin2Pin completo, si invita a visionare le famiglie di prodotti System on Module Pin2Pin di Variscite.

** La compatibilità pin2pin dipende dalle opzioni di pinmux; si consiglia di verificate le tabelle di pinout dei relativi SoM per garantire la compatibilità tra specifici design.

  • iso 9001:2015
  • iso 14001:2015
  • iso 13485:2016
  • platinum partner nxp

Specifications

CPU

Up to 1.8GHz Quad Cortex™-A53 NXP i.MX8M Mini

Dimensions

Only 55 x 30 mm

Certified WiFi/BT

Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4

Multimedia

1080p60 Encode/Decode and display, HQ audio, HD GPU

Temperature range

-40 to 85°C

Product Longevity

2034

Pin2pin Family

DART Pin2Pin family

CPU Name

NXP i.MX8M Mini

CPU Type

Cortex™-A53

CPU Cores

4 Cores

CPU Clock (Max)

Up to 1.8GHz

Real-time co-processor

400MHz Cortex™-M4

Integer performance (DMIPS)

Up to 16,560

RAM

1 – 4 GB LPDDR4

eMMC

8 – 128 GB

Multimedia

2D/3D Graphics Acceleration

Vivante GC320/GC NanoUltra

Video Encode / Decode

1080p60 H.265/H.264/VP9 Decode, 1080p60 H.264/VP8 Encode

Camera Interfaces

MIPI-CSI2

Display

DSI

MIPI-DSI 1920×1080 24-bit

LVDS

Dual 1920×1080 24-bit

Touch controller

Capacitive

Audio

Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

5 x I2S(SAI), S/PDIF, PDM

Line In/Out

Yes

Connectivity

SD / MMC

x1

USB Host / Device

USB2.0: 2x OTG

UART

x4, up to 4 Mbps

I2C

x3

SPI

x3

RTC

On carrier

JTAG

x1

QSPI

x1

PCI-Express

Gen 2.0

Networking

Ethernet

10/100/1000 Mbps

Wi-Fi

Rev.1: Certified Wi-Fi 5 dual-band 802.11 ac/a/b/g/n
Rev.2: Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

Rev.1: BT/BLE 5.2
Rev.2: BT/BLE 5.4

Linux

Yocto, Debian, Boot2Qt

Android

Yes

FreeRTOS

Yes

Mechanical Specifications

Dimensions (W x L)

55.0 x 30.0 mm

Electronic Specifications

Supply voltage

3.5 – 5 V

Digital I/O voltage

3.3 V/1.8V

Environmental Specifications

Commercial operating temperature

0 to 70°C

Extended operating temperature

-25 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

DART-MX8M-Mini-Block-Diagram Diagram

DART-MX8MM[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[LD]_[WB[D]]_[x]T

MX8MM[x]:

CPU type: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT), 1600MHz: 1600C (ET/IT)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[LD]:

LVDS interface

[WB[D]]

Rev1 WiFi/BT:
WB: Built-in certified Wi-Fi 4 single band 802.11 b/g/n + BT/BLE 5.1
WBD: Built-in certified Wi-Fi 5 dual band 802.11ac/a/b/g/n + BT/BLE 5.2

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

DART-MX8MM[x]_V2_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[LD]_[WBD/ WBE]_[SDEX]_[x]T

MX8MM[x]:

CPU type: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT), 1600MHz: 1600C (ET/IT)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[LD]:

LVDS interface

[WBD/WBE]

Rev2 WiFi/BT:
WBD: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.4
WBE: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4

[SDEX]

Default: no extra SDIO
SDEX: extra SDIO port, available only when no WBD/WBE is selected

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options

DART-MX8M-MINI Evaluation Kits

I development kit e starter kit DART-MX8M-MINI possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: i kit forniscono un’ottima indicazione delle funzioni di connettività di DART-MX8M-MINI e della sua performance.

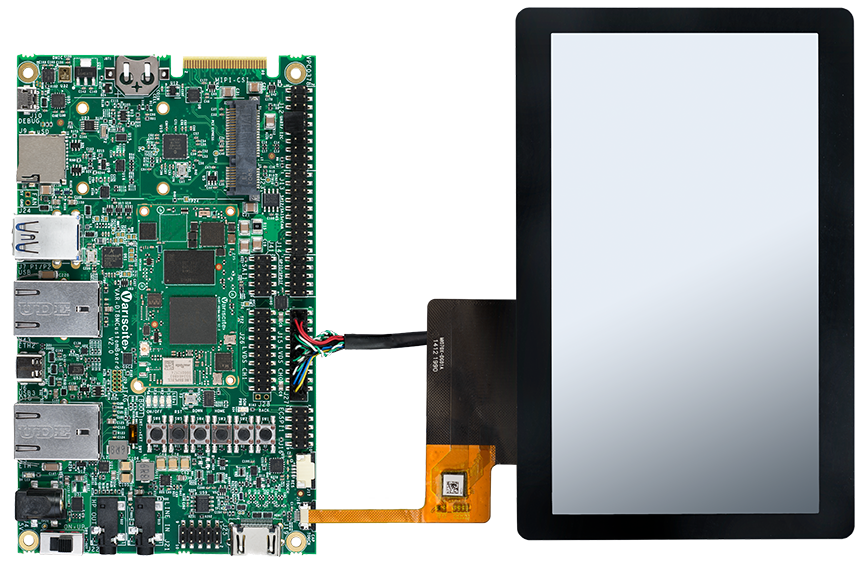

DART-MX8M-MINI- WiFi 6 Evaluation Kits
