DART-MX8M-PLUS :
NXP i.MX 8M Plus

A partire da 59$

Il futuro dei sistemi embedded, racchiuso in un fattore di forma ridotto a soli 55 x 30 mm.
Il DART-MX8M-PLUS gira su un processore da 1.8 GHz Quad Cortex™-A53 NXP i.MX 8M dotato di un co-processore in da 800 MHz Cortex™-M7 real-time. Questo è il primo processore i.MX in grado di fornire capacità dedicate di Artificial Intelligence/Machine Learning (AI/ML) grazie a una Neural Processing Unit (NPU) e un sistema di visione intelligente basato su un Image Signal Processor (ISP) e interfacce per fotocamera.

Oltre alle sue capacità integrate AI/ML, il System on Module / Computer on Module offre funzioni multimediali avanzate che includono video encode e decode engine H.265 HD, un’avanzata accelerazione grafica 2D/3D, display HDMI, LVDS, MIPI-DSI, dual GbE, 2 x USB 3, PCie, 2 x CANF-FD e ingressi per fotocamera.

Read More

Il DART-MX8M-PLUS appartiene alla famiglia di prodotti DART Pin2pin, la quale fornisce un ampio range di scalabilità; dalla piattaforma i.MX8M Mini, attraverso i.MX8M, iMX8M Plus, i.MX93 fino a i.MX95. L’elenco completo dei prodotti Pin2Pin è disponibile nella sezione Famiglia di System On Module Pin2Pin Variscite.

** La compatibilità pin2pin dipende dalle opzioni di pinmux; si consiglia di verificate le tabelle di pinout dei relativi SoM per garantire la compatibilità tra specifici design.

Read Less
  • iso 9001:2015
  • iso 14001:2015
  • iso 13485:2016
  • platinum partner nxp

Specifiche

CPU

Up to 1.8GHz Quad Cortex™-A53 NXP i.MX 8M Plus

High Speed Interfaces

2x USB3.0, 2x GbE, PCIe, HDMI

Dimensions

Only 55 x 30 mm

Multimedia

1080p60 H265/H264 encode/decode, AI/ML acceleration, HD 2D/3D GPU

Temperature range

-40 to 85°C

Product Longevity

2036

Pin2pin Family

DART Pin2Pin family

CPU Name

NXP i.MX 8M Plus

CPU Type

Cortex™-A53

CPU Cores

4 Cores

CPU Clock (Max)

Up to 1.8GHz

Real-time co-processor

800MHz Cortex-M7

DSP

HiFi4 DSP

Integer performance (DMIPS)

Up to 16,560

RAM

1 – 8 GB LPDDR4

eMMC

8 – 128 GB

Multimedia

2D/3D Graphics Acceleration

GC7000UL/ GC520L

Video Encode / Decode

1080p60 H.265/ H.264/ VP9/ VP8 Decoder, 1080p60 H.265/ H.264 Encoder

Camera Interfaces

2x MIPI CSI2

AI/ML

AI/ML NPU acceleration 2.3 TOPS

Image Signal Processor (ISP)

Yes

Display

HDMI

V2.0a up to 4Kp30

DSI

MIPI-DSI 1920×1080 24-bit

LVDS

Dual 1920×1080 24-bit

Touch controller

Capacitive

Audio

Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

6 x I2S(SAI), S/PDIF RX TX, PDM 8CH

Line In/Out

Yes

Connectivity

SD / MMC

x1

USB Host / Device

USB 3.0/2.0 2x OTG

UART

x4, up to 5 Mbps

I2C

x5

SPI

x3

CAN Bus

x2 CAN/CAN-FD (Flexible Data-Rate)

RTC

On carrier

JTAG

x1

QSPI

X1

PCI-Express

Gen 3.0

Networking

Ethernet

2x 10/100/1000 Mbps (1x Ethernet with TSN support)

Wi-Fi

Rev.1: Certified Wi-Fi 5 dual-band 802.11 ac/a/b/g/n
Rev.2: Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

Rev.1: BT/BLE 5.2
Rev.2: BT/BLE 5.4

Linux

Yocto, Debian, Boot2Qt

Android

Yes

FreeRTOS

Yes

Mechanical Specifications

Dimensions (W x L)

55.0 x 30.0 mm

Electronic Specifications

Supply voltage

3.4V- 5V

Digital I/O voltage

3.3V/1.8V

Environmental Specifications

Commercial operating temperature

0 to 70°C

Extended operating temperature

-25 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

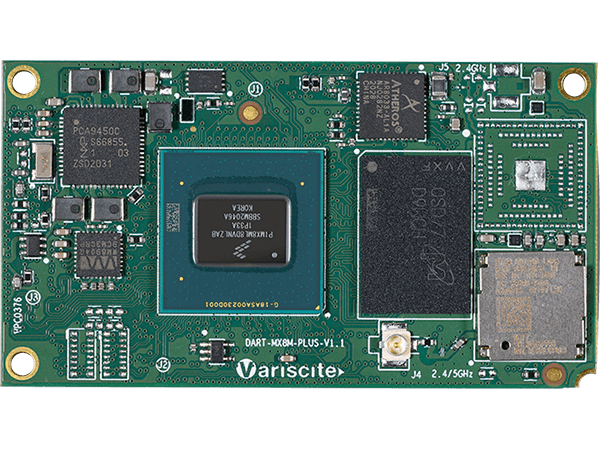

DART-MX8M-PLUS V1

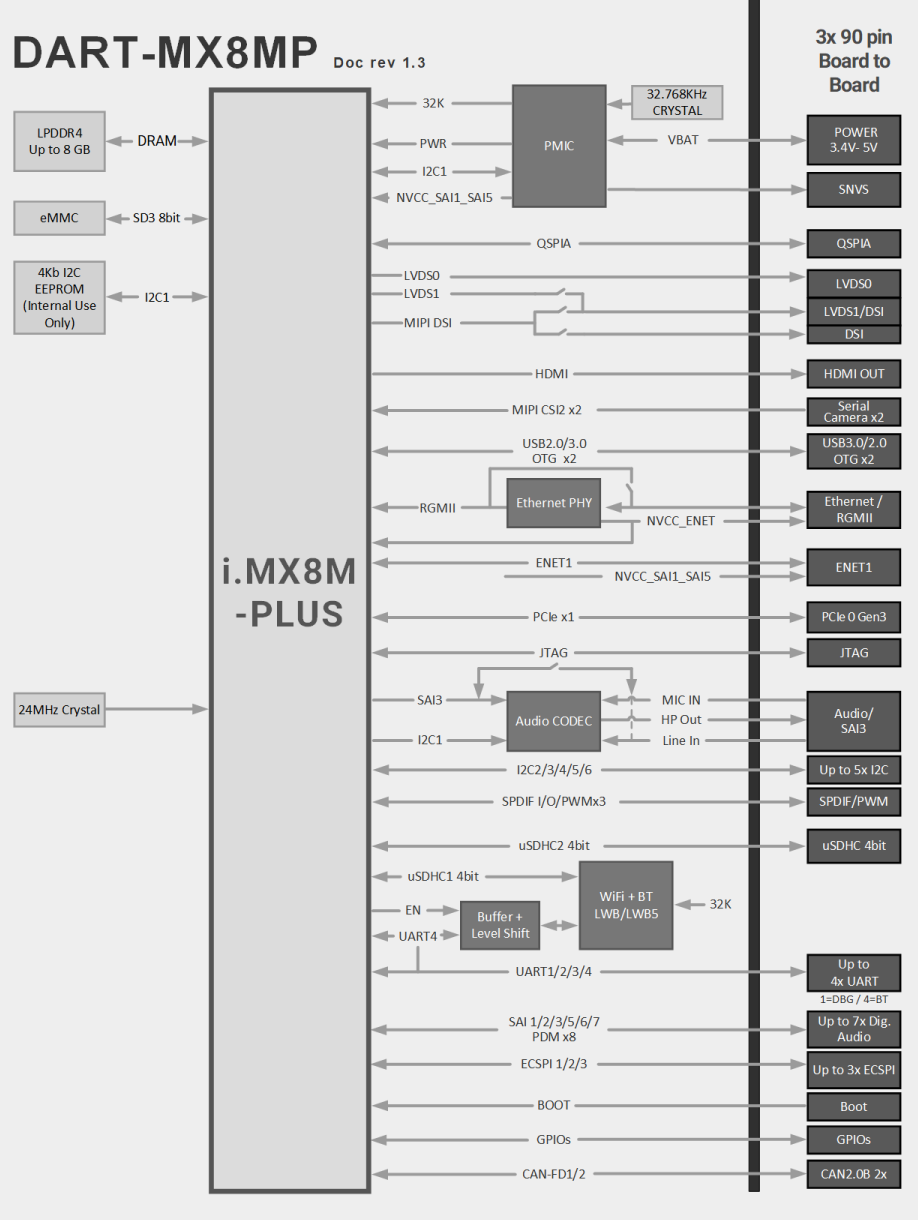

DART MX8M PLUS Block Diagram Diagram

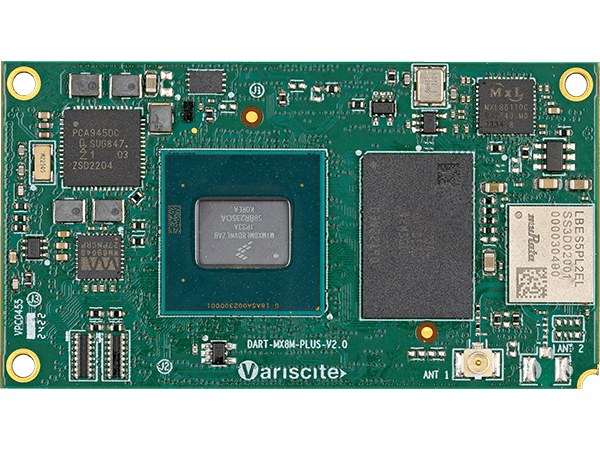

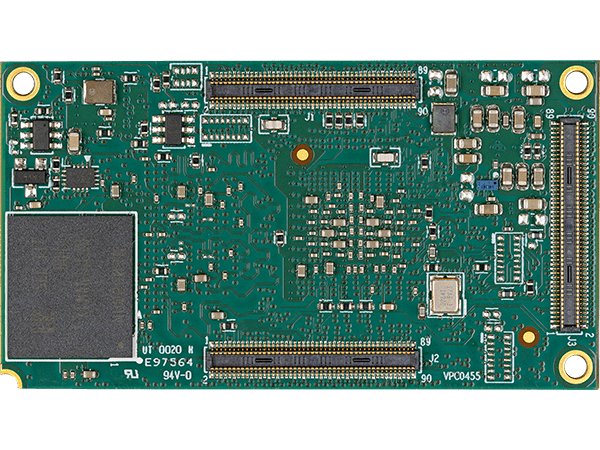

DART-MX8M-PLUS V2
DART-MX8M-PLUS : NXP i.MX 8M Plus v.2x Block Diagram Diagram
DART MX8M PLUS Block Diagram Diagram
DART-MX8M-PLUS : NXP i.MX 8M Plus v.2x Block Diagram Diagram
DART-MX8MP[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[WB[D]]_[DSCM]_[X]T

MX8MP[x]:

i.MX 8M-Plus cores: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT grade), 1600MHz: 1600C (ET/IT grade)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[WB[D]]

WB: Built-in certified single band Wi-Fi 802.11 b/g/n + Bluetooth 5.1/BLE
WBD: Built-in certified Wi-Fi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE

[DSCM]

Default: Dual LVDS (#0 and #1) plus DSI
DSCM: LVDS #0, DSI in pin2pin compatible mode instead of LVDS #1

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

DART-MX8MP[x]_V2_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[WBD/WBE]_[DSCM]_[X]T

MX8MP[x]:

i.MX 8M-Plus cores: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT grade), 1600MHz: 1600C (ET/IT grade)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[WBD/WBE]

WBD: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4
WBE: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4

[DSCM]

Default: Dual LVDS (#0 and #1) plus DSI
DSCM: LVDS #0, DSI in pin2pin compatible mode instead of LVDS #1

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options

DART-MX8M-PLUS Evaluation Kits

I development kit e starter kit DART-MX8M-PLUS possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: i kit forniscono un’ottima indicazione delle funzioni di connettività di DART-MX8M-PLUS e della sua performance.

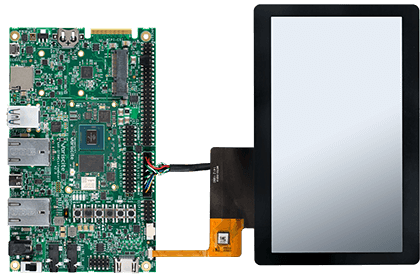

DART-MX8M-PLUS WBD Evaluation kit
