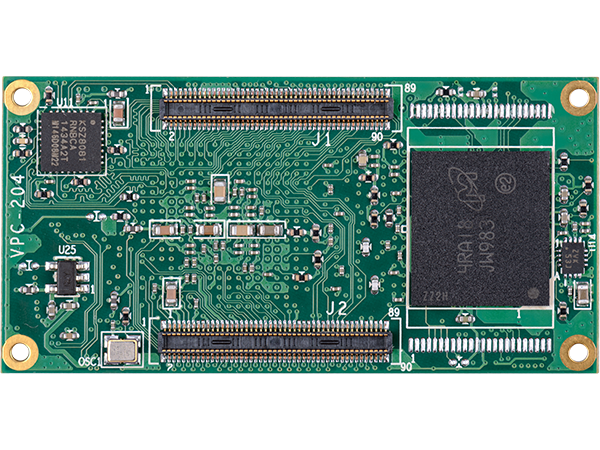

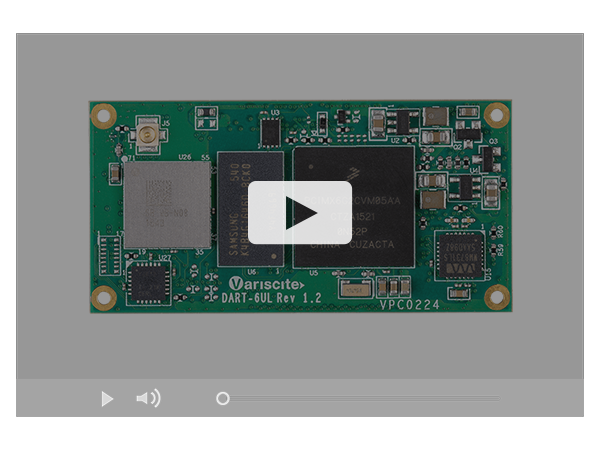

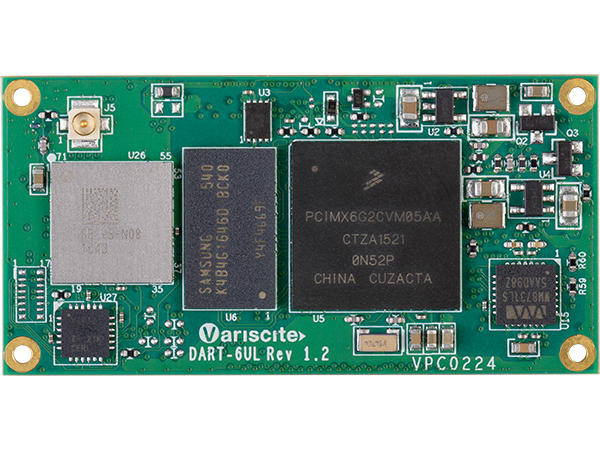

DART-6UL :
NXP iMX6UL / iMX6ULL / iMX6ULZ

A partire da 24 $

Con le sue dimensioni ridotte a 50 x 25mm, il DART-6UL è System On Module (SoM) / Computer on Module (CoM) molto flessibile basato sul processore NXP/Freescale iMX6UL / iMX6ULL / iMX6ULZ ARM Cortex-A7™ fino a 900MHz CPU Clock. Il DART-6UL fornisce una varietà di interfacce e opzioni di connettività – il tutto corredato dall’ottimizzazione del consumo, delle dimensioni e del costo. La connettività altamente integrata del DART-6UL include un dual-band Wi-Fi 802.11 ac/a/b/g/n, Bluetooth/BLE, dual Ethernet, dual USB, audio, camera in, display certificato con touch panel e interfacce seriali. Il sistema supporta temperature industriali da -40 to 85°C e può essere impiegato in prodotti embedded di vari segmenti e applicazioni dell’industria.

Ulteriore convenientissima variante del DART-6UL, gestito dal processore NXP 900MHz i.MX 6ULZ. La nuova variante è pin-compatibile con quelle basate su i.MX 6UL e i.MX 6ULL del DART-6UL SoM, e offrono ai clienti un prodotto altamente scalabile al miglior rapporto qualità/prezzo.
Leggi di più>

Specifiche

CPU	900MHz Cortex™-A7 NXP iMX6UL / iMX6ULL / iMX6ULZ
Dimensions	Only 50 x 25 mm
Certified WiFi/BT	802.11 ac/a/b/g/n + BT 5.2/BLE
Power Consumption	Under 5mA in suspend
Temperature range	-40 to 85°C
Product Longevity	2035

CPU Name	NXP/Freescale i.MX6 UltraLite / i.MX 6ULL / iMX 6ULZ
CPU Type	Cortex™-A7
CPU Cores	1 Core
CPU Clock (Max)	900 MHz
Integer performance (DMIPS)	Up to 1,710

RAM	128 – 1024 MB DDR3L
SLC NAND	128 – 512 MB
eMMC	8 – 128 GB

Multimedia
2D/3D Graphics Acceleration	2D pixel acceleration engine (PxP)
Camera Interfaces	1x 24bit CPI

Display
Parallel RGB	1366 x 768 24-bit
Touch controller	Resistive, Capacitive

Audio
Headphone driver	Yes
Microphone	Analog
Digital audio serial interface	SSI(AUDMUX), S/PDIF
Line In/Out	Yes

Connectivity
SD / MMC	x1
USB Host / Device	USB 2.0 : 1x Host, 1x OTG
UART	x8, up to 5 Mbps
I2C	x4
SPI	x4
RTC	On carrier
CAN Bus	x2
ADC	12-bit 2 x 10 channel

Networking
Ethernet	2x 10/100 Mbps
Wi-Fi	DART-6UL: Certified 802.11 b/g/n, DART-6UL-5G: Certified 802.11 ac/a/b/g/n
Bluetooth	BT/BLE 5.2

Linux	Yocto, Debian
Android	N/A

Mechanical Specifications
Dimensions (W x L)	50.0 x 25.0 mm

Electronic Specifications
Supply voltage	3.3 V
Digital I/O voltage	3.3 V

Environmental Specifications
Commercial operating temperature	0 to 70°C
Industrial operating temperature	-40 to 85°C
Storage temperature	-40 to 85°C
Storage humidity	5% to 95%

DART-6UL_G/Y/Z[x]_[xxx]C_[xxx]R_[xx]N_[AC]_[EC]_[WB]_[x]T
G/Y/Z[x]:	CPU type: 6ULZ: Z (limited interfaces, 900MHz CT only) 6ULL Y2 : Y2 6UL G2 with extra security features: G2 6UL G3 with full security: G3 (Feature comparison chart)
[xxx]C	CPU clock speed: 528MHz: 500C, 696MHz: 700C (only available for G2), 792MHz: 800C (only available for Y2), 900MHz: 900C (only available for 6ULZ and 6ULL Y2)
[xxx]R	RAM size: 128 MB : 128R, 256 MB : 256R, 512 MB : 512R, 1024 MB : 1024R
[x]N:	NAND / eMMC size: NAND : 128 MB : 01N, 256 MB : 02N, 512 MB : 05N eMMC : 8 GB : 4N, 8 GB : 8N, 16 GB : 16N, 32 GB : 32N, 64 GB : 64N
[AC]:	Audio Codec
[EC]:	Ethernet PHY
[WB]	Built-in certified Wi-Fi 802.11 b/g/n + Bluetooth 5.1/BLE
[x]T:	C : 0 to 70°C, I : -40 to 85°C

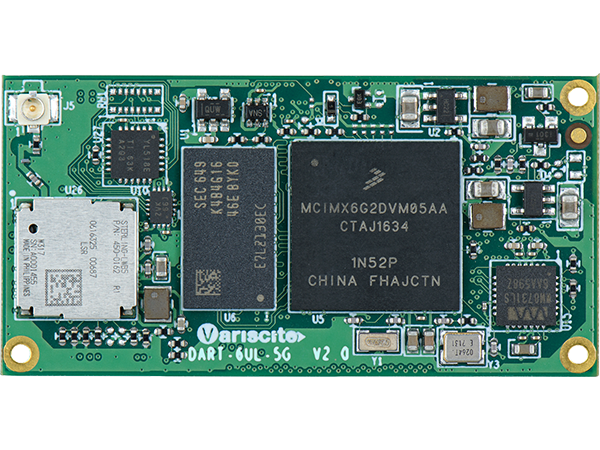

DART-6UL-5G_G/Y/Z[x]_[xxx]C_[xxx]R_[xx]N_[AC]_[EC]_[WBD]_[x]T
G/Y/Z[x]	CPU type: 6ULZ: Z (limited interfaces, 900MHz CT only) 6ULL Y2 : Y2 6UL G2 with extra security features: G2 6UL G3 with full security: G3 (Feature comparison chart)
[xxx]C	CPU clock speed: 528MHz: 500C, 696MHz: 700C (only available for G2), 792MHz: 800C (only available for Y2), 900MHz: 900C (only available for 6ULZ and 6ULL Y2)
[xxx]R	RAM size: 128 MB : 128R, 256 MB : 256R, 512 MB : 512R, 1024 MB : 1024R
[x]N:	NAND / eMMC size: NAND : 128 MB : 01N, 256 MB : 02N, 512 MB : 05N eMMC : 4 GB (IT only) : 4N, 8 GB : 8N, 16 GB : 16N, 32 GB : 32N, 64 GB : 64N
[AC]:	Audio Codec
[EC]:	Ethernet
[WBD]	Built-in certified Wi-Fi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE
[x]T:	C : 0 to 70°C, I : -40 to 85°C

DART-6UL-5G_V2_G/Y/Z[x]_[xxx]C_[xxx]R_[xx]N_[AC]_[EC]_ [WBD/ WBE]_[x]T
G/Y/Z[x]	CPU type: 6ULZ: Z (limited interfaces, 900MHz CT only) 6ULL Y2 : Y2 6UL G2 with extra security features: G2 6UL G3 with full security: G3 (Feature comparison chart)
[xxx]C	CPU clock speed: 528MHz: 500C, 696MHz: 700C (only available for G2), 792MHz: 800C (only available for Y2), 900MHz: 900C (only available for 6ULZ and 6ULL Y2)
[xxx]R	RAM size: 128 MB : 128R, 256 MB : 256R, 512 MB : 512R, 1024 MB : 1024R
[x]N:	NAND / eMMC size: NAND : 128 MB : 01N, 256 MB : 02N, 512 MB : 05N eMMC : 4 GB (IT only) : 4N, 8 GB : 8N, 16 GB : 16N, 32 GB : 32N, 64 GB : 64N
[AC]:	Audio Codec
[EC]:	Ethernet
[WBD]	Rev2 WiFi/BT: WBD: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.4 WBE: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4
[x]T:	C : 0 to 70°C, I : -40 to 85°C


Note: All the add-ons in [brackets] are optional.

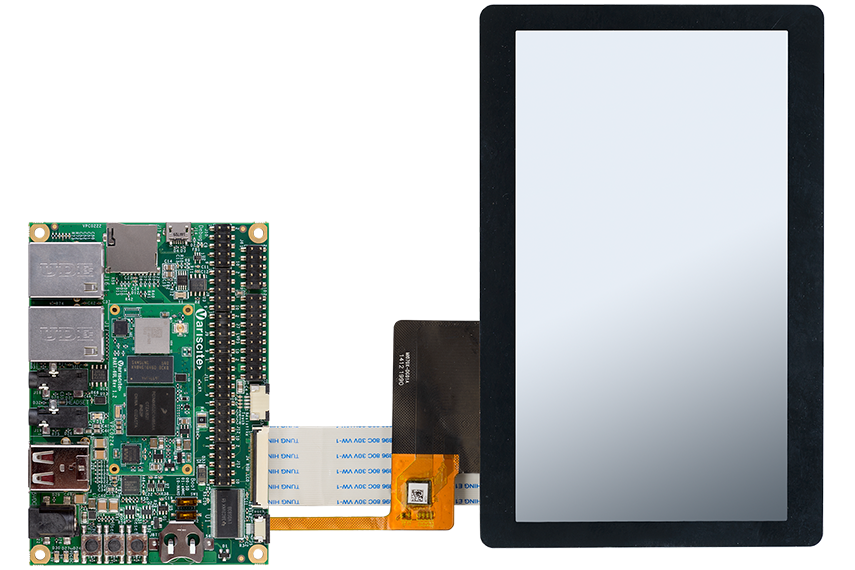

DART-6UL Evaluation Kits

I development kit e starter kit DART-6UL possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni: i kit forniscono un’ottima indicazione delle funzioni di connettività di DART-6UL e della sua performance.
