VAR-SOM-MX7 :
NXP/Freescale iMX7

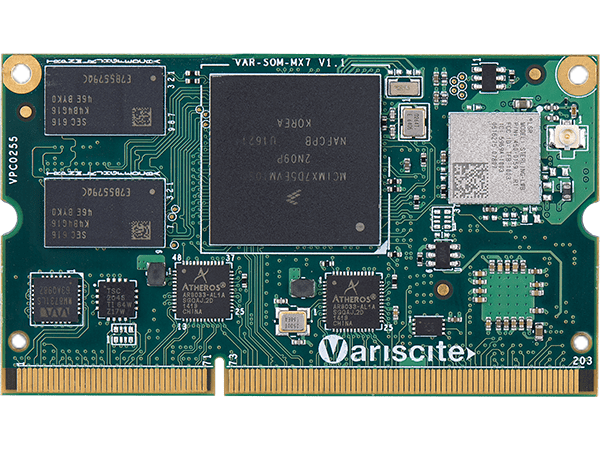

Il VAR-SOM-MX7 è un System on Module (SoM) / Computer on Module (CoM) altamente flessibile basato sulla gamma NXP/Freescale i.MX7 – un processore da 1 GHz Dual-core ARM Cortex-A7™ con co-processore real-time da 200MHz ARM Cortex™-M4. Il VAR-SOM-MX7 fornisce una varietà di interfacce e opzioni di connettività – il tutto corredato dall’ottimizzazione del consumo, delle dimensioni e del costo. La connettività altamente integrata del VAR-SOM-MX7 include un Wi-Fi, Bluetooth/BLE, dual Gigabit Ethernet, dual USB, audio certificato con touch panel e interfacce seriali. Inoltre, il sistema supporta applicazioni embedded di livello industriale che richiedono un vasto intervallo di temperature.

Novità: il VAR-SOM-MX7-5G è dotato di funzioni migliorate, che includono un modulo certificato Wi-Fi/Bluetooth con dual-band 2.4/5 GHz e 802.11 ac/a/b/g/n.

  • iso 9001:2015
  • iso 14001:2015
  • iso 13485:2016
  • platinum partner nxp

Specifiche

CPU

Dual 1GHz Cortex™-A7 NXP iMX7

Real-time CPU

200 MHz Cortex-M4

Certified WiFi/BT

802.11 ac/a/b/g/n + BT 5.2/BLE

Ethernet

Dual 10/100/1000Mbps

Temperature range

-20 to 85°C

Product Longevity

2035

CPU Name

NXP/Freescale i.MX7

CPU Type

Cortex™-A7

CPU Cores

2 Cores

CPU Clock (Max)

1 GHz

Real-time co-processor

1x 200MHz Cortex™-M4

Integer performance (DMIPS)

Up to 3,800

RAM

256 – 2048 MB DDR3L

SLC NAND

128 – 512 MB

eMMC

8 – 128 GB

Multimedia

2D/3D Graphics Acceleration

2D pixel acceleration engine (PxP)

Camera Interfaces

1x 24bit CPI, Dual lane MIPI

Display

Parallel RGB

1920 x 1080 24-bit

DSI

1400 x 1050 24-bit

Touch controller

Resistive, Capacitive

Other

EPDC

Audio

Headphone driver

Yes

Microphone

Analog

Digital audio serial interface

SAI/MQS

Line In/Out

Yes

Connectivity

SD / MMC

x1

USB Host / Device

USB 2.0 : 1x Host, 1x OTG

UART

x7, up to 4 Mbps

I2C

x4

SPI

x4

RTC

On carrier

ADC

2 x 4 channel 12-bit

CAN Bus

x2

PCI-Express

Gen 2.0

Networking

Ethernet

2x 10/100/1000 Mbps

Wi-Fi

VAR-SOM-MX7: Certified 802.11 b/g/n,
VAR-SOM-MX7-5G: Certified 802.11 ac/a/b/g/n

Bluetooth

BT/BLE 5.2

Linux

Yocto, Debian

Android

N/A

Mechanical Specifications

Dimensions (W x L)

67.8 x 38.6 mm

Electronic Specifications

Supply voltage

3.3 V

Digital I/O voltage

3.3 V

Environmental Specifications

Commercial operating temperature

0 to 70°C

Industrial operating temperature

-20 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

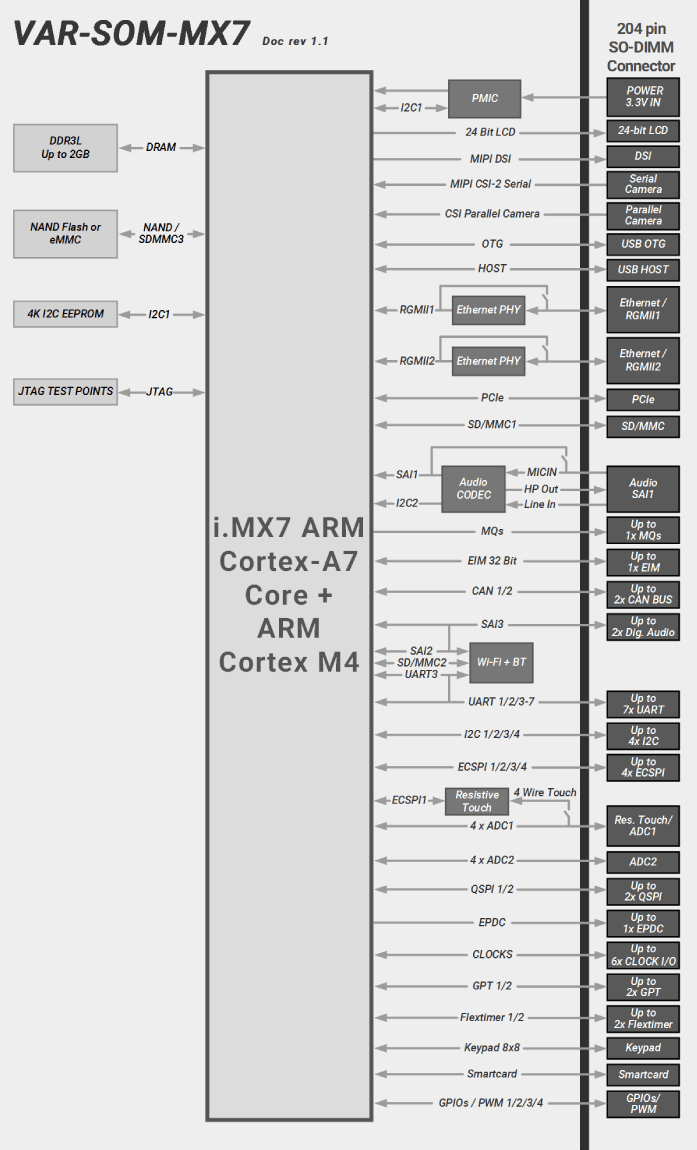

VAR-SOM-MX7 Block Diagram NXP i.MX7 Diagram

VAR-SOM-MX7_[xxxx]R_[xx]N_[AC]_[EC1]_[EC2]_[TP]_[WB]_[x]T

[xxx]R

RAM size: 256 MB : 256R, 512 MB : 512R, 1024 MB: 1024R, 2048 MB : 2048R

[x]N:

NAND / eMMC size:
NAND : 128 MB : 01N, 256 MB : 02N, 512 MB : 05N
eMMC : 8 GB : 8N, 16 GB : 16N, 32 GB : 32N, 64 GB : 64N

[AC]:

Audio Codec

[EC1]:

1st Gigabit Ethernet PHY

[EC2]:

2nd Gigabit Ethernet PHY

[TP]:

Resistive touch panel controller.
Note: Capacitive touch is natively supported through I2C in the base configuration

[WB]

WB: Built-in certified Wi-Fi 802.11 b/g/n + Bluetooth 5.1/BLE

[x]T:

C : 0 to 70°C, I : -20 to 85°C

VAR-SOM-MX7-5G_[xxxx]R_[xx]N_[AC]_[EC1]_[EC2]_[TP]_[WBD]_[x]T

[xxx]R

RAM size: 256 MB : 256R, 512 MB : 512R, 1024 MB : 1024R, 2048 MB : 2048R

[x]N:

NAND / eMMC size:
NAND : 128 MB : 01N, 256 MB : 02N, 512 MB : 05N
eMMC : 8 GB : 8N, 16 GB : 16N, 32 GB : 32N, 64 GB : 64N

[AC]:

Audio Codec

[EC1]:

1st Gigabit Ethernet PHY

[EC2]:

2nd Gigabit Ethernet PHY

[TP]

Resistive touch panel controller.
Note: Capacitive touch is natively supported through I2C in the base configuration

[WBD]

Built-in certified Wi-Fi 802.11 ac/a/b/g/n + Bluetooth 5.2/BLE

[x]T:

C : 0 to 70°C, I : -20 to 85°C

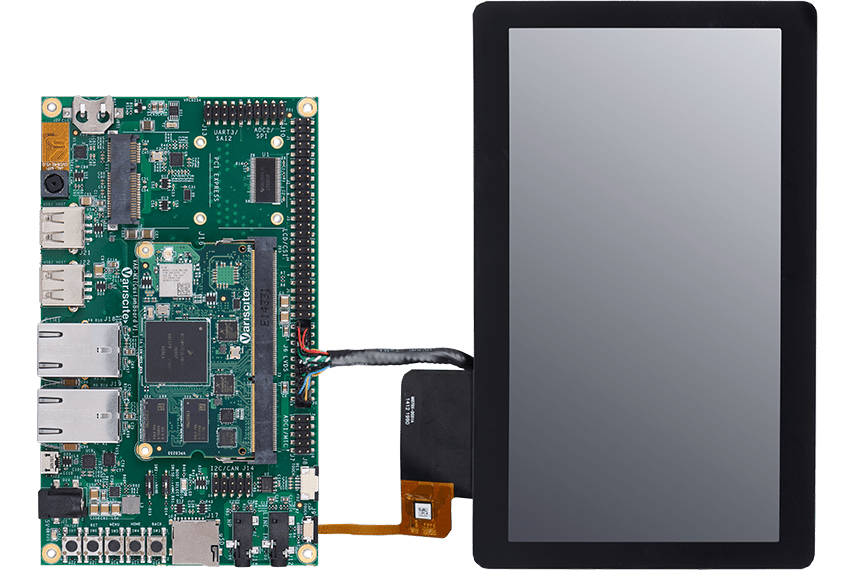

VAR-SOM-MX7 Evaluation Kits
