Highlights
Frame.svg
CPU
Up to 1.7GHz Dual Cortex-A55 NXP i.MX93
Frame_1.svg
High Speed Interfaces
2x USB2.0, 2x GbE
Frame_2.svg
Certified WiFi/BT
Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4
Frame_4.svg
Temperature range
-40 to 85°C
Group-1000002059.svg
Multimedia
AI/ML acceleration, 2D PXP engine
calendar.svg
Product Longevity
2038
Group-1000002196.svg
Pin2pin Family
DART Pin2Pin family
Learn More
System on Module support
Support
Supporting you every step of the way - from ideation to launch and beyond. Free and prompt support directly from Variscite’s R&D experts.
Quick Links
Specifications
CPU Name

NXP i.MX93

CPU Type

Cortex-A55

CPU Cores

2 cores

CPU Clock (Max)

Up to 1.7GHz

Real-time co-processor

250MHz Cortex-M33

Integer performance (DMIPS)

Up to 9,010

RAM

512 - 2048 MB LPDDR4

eMMC

8 – 128 GB

Multimedia
2D/3D Graphics Acceleration

2D pixel acceleration engine (PxP)

Camera Interfaces

MIPI-CSI2, ISI (Parallel)

AI/ML

AI/ML NPU acceleration 0.5 TOPS

Display
Parallel RGB

1366x768p60 or 1280x800p60

DSI

MIPI-DSI 1920×1200 24-bit

LVDS

1366x768p60 or 1280x800p60

Touch controller

Resistive, Capacitive

Audio
Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

3 x I2S(SAI), S/PDIF, RX TX, PDM 4CH

Line In/Out

Yes

Connectivity
SD / MMC

x1

USB Host / Device

USB2.0: 2x OTG

UART

x4, up to 5 Mbps

I2C

x5

SPI

x3

CAN Bus

x2

RTC

On carrier

JTAG

x1

ADC

x4

Networking
Ethernet

2x 10/100/1000 Mbps

Wi-Fi

Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

BT/BLE5.4

Linux

Yocto, Debian, Boot2Qt

FreeRTOS

Yes

Mechanical Specifications
Dimensions (W x L)

55.0 x 30.0 mm

Mechanical Specifications
Supply voltage

3.3V or 3.4-5V

Digital I/O voltage

3.3V/1.8V

Environmental Specifications
Commercial operating temperature

0 to 70°C

Extended operating temperature

-25 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

zoom
DART-MX93[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[WBD/WBE]_[SDEX]_[X]T
MX93[x]:

Processor type:
i.MX 9331 single core no NPU: S
i.MX 9352 dual core with NPU: D

[xxxx]C:

CPU clock speed: 1700MHz: 1700C

[xxxx]R:

LP-DDR4: 512 MB: 512R, 1536 MB: 1536R, 2048 MB: 2048R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G

[AC]:

Audio Codec

[EC]:

GbE PHY (second port always via RGMII)

[WBD/WBE]

WBD: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4
WBE: Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4

[SDEX]

Default: no extra SDIO
SDEX: extra SDIO port, available only when no WBD/WBE is selected

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options
Documentation

Our long-standing partnerships

Our close partnerships with leading technology vendors provide our customers with early access to the latest advanced solutions, ensuring your projects begin with a solid and future-ready foundation.
Meet Our Partners
Evaluation Kit

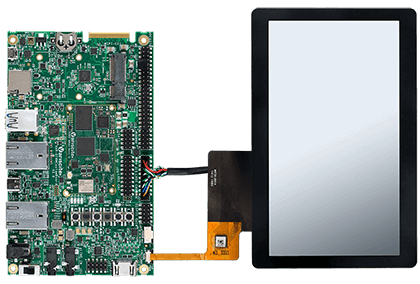

DART-MX93 Evaluation Kits
Order a Kit Kit Specs
DART-MX93 Evaluation Kits
Accessories
VHP-DT-SP
VAC-ANT_5_Flex_Molex
VCAM-5640S-1ST
Camera Board

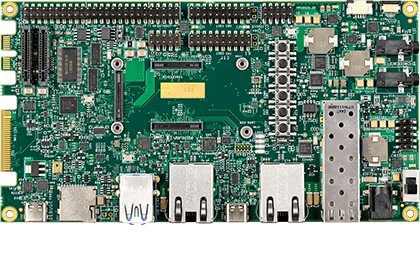

Sonata-Board
