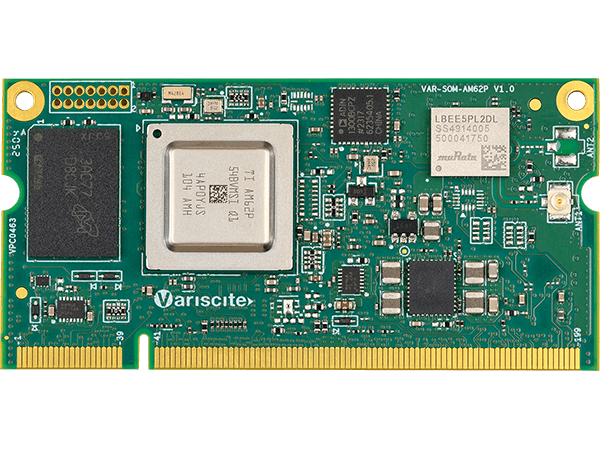

Il VAR-SOM-AM62P è un System on Module (SoM)/Computer on Module che punta all’ottimizzazione dei costi e offre solide prestazioni per applicazioni multimediali avanzate con codifica/decodifica video H.264/H.265, GPU 3D e multi-schermo.
Dotato del SoC Sitara™ AM62Px di Texas Instruments, il VAR-SOM-AM62P combina un SoC quad-core Cortex®-A53 a 1,4 GHz con un co-processore in tempo reale Cortex-R5F a 800 MHz. Il SoM offre ampie opzioni di connettività, tra cui Wi-Fi 6 certificato (802.11ax/ac/a/b/g/n) con 802.15.4 e Bluetooth/BLE 5.4, doppia Ethernet Gigabit, CAN-FD 4x, audio, ingresso telecamera e doppia USB. Costruito per essere affidabile in ambiente industriale, opera a un intervallo di temperatura compreso tra -40°C e 85°C.
In quanto componente della famiglia VAR-SOM Pin2Pin, il VAR-SOM-AM62P offre una scalabilità ininterrotta su un’ampia gamma di piattaforme, dai SoM entry-level a quelli ad alte prestazioni, semplificando lo sviluppo e aumentando la longevità del prodotto.
Specifications
CPU | Up to 1.4GHz Quad Cortex-A53 Texas Instruments Sitara AM62P5 |
Real-time CPU | 800MHz Cortex-R5F |
High Speed Interfaces | 2x USB2.0, 2x GbE |
Certified WiFi/BT | Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4 |
Temperature range | -40 to 85°C |
Pin2pin Family |
CPU Name | Texas Instruments AM62P5 |
CPU Type | Cortex-A53 |
CPU Cores | 4 Cores |
CPU Clock (Max) | Up to 1.4GHz |
Real-time co-processor | 800MHz Cortex-R5F |
Integer performance (DMIPS) | Up to 12,880 |
RAM | 1 – 8 GB LPDDR4 |
eMMC | 8 – 128 GB |
| Multimedia | |
|---|---|
2D/3D Graphics Acceleration | 3D GPU with OpenGL ES 3.2 & Vulkan 1.2 |
Video Encode / Decode | H.264/H.265 Video Encoder/Decoder |
Camera Interfaces | MIPI-CSI2 |
| Display | |
|---|---|
DSI | MIPI-DSI 3840×1080@60fps 24-bit |
LVDS | 2x LVDS up to 3840×1080@60fps 24-bit |
Touch controller | Resistive, Capacitive |
| Audio | |
|---|---|
Headphone driver | Yes |
Microphone | Digital, Analog (stereo) |
Digital audio serial interface | 3 x I2S(McASP) |
Line In/Out | Yes |
| Connectivity | |
|---|---|
SD / MMC | x1 |
USB Host / Device | USB2.0: 2x OTG |
UART | x9, up to 3.6 Mbps |
I2C | x5 |
SPI | x5 |
CAN Bus | 4x CAN/CAN-FD (Flexible Data-Rate) |
RTC | On carrier |
JTAG | x1 (via optional header) |
QSPI | x1 OSPI/ x2 QSPI |
GPMC | GPMC for external 8/16-bit parallel bus |
| Networking | |
|---|---|
Ethernet | 2x 10/100/1000 Mbps |
Wi-Fi | Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4 |
Bluetooth | BT/BLE 5.4 |
Linux | Yocto, Debian |
Android | Yes |
| Mechanical Specifications | |
|---|---|
Dimensions (W x L) | 67.8 x 33mm |
| Electronic Specifications | |
|---|---|
Supply voltage | 3.3V |
Digital I/O voltage | 3.3V |
| Environmental Specifications | |
|---|---|
Extended operating temperature | 0 to 85°C |
Industrial operating temperature | -40 to 85°C |
Storage temperature | -40 to 85°C |
-40 to 85°C | 5% to 95% |
|
