VAR-SOM-MX8M-PLUS :
NXP i.MX 8M Plus

A partire da 58$

Il System On Module / Computer on Module VAR-SOM-MX8M-PLUS è basato su un processore da 1.8GHz Quad Cortex™-A53 NXP i.MX 8M Plus dotato di un co-processore da 800MHz Cortex™- M7 Real-time – una nuova generazione di processori che combina le capacità di Intelligenza artificiale (IA)/Machine Learning (ML) integrate con funzioni multimediali avanzate.

Questo SoM include una Neural Processing Unit (NPU) dedicata, un sistema di visione intelligente basato su un Image Signal Processor (ISP) e ingressi dual per fotocamera; inoltre, è dotato di funzioni multimediali e di connettività avanzate, come H.265 HD video encode e decode engine, GPU 2D/3D avanzate, elaborazione vocale, Wi-Fi 6 dual-band certificato 802.11ax/ac/a/b/g/n con BT/BLE 5.4 e 802.15.4 opzionale, PCIe, fino a 4K HDMI, dual LVDS e DSI (uscita display).

Il VAR-SOM-MX8X-NANO è un membro della serie di prodotti VAR-SOM Pin2Pin, il che significa che fornisce un massimo range di scalabilità; dalla piattaforma esordiente i.MX6UL/6ULL, alle piattaforme i.MX 6, i.MX 8M Nano, i.MX 8M Mini, i.MX 8X fino alla i.MX 8QuadMax.

L’elenco completo dei prodotti Pin2Pin è disponibile nella sezione Famiglia di System On Module Pin2Pin Variscite.

** La compatibilità pin2pin dipende dalle opzioni di pinmux; si consiglia di verificate le tabelle di pinout dei relativi SoM per garantire la compatibilità tra specifici design.

  • iso 9001:2015
  • iso 14001:2015
  • iso 13485:2016
  • platinum partner nxp

Specifiche

CPU

Up to 1.8GHz Quad Cortex™-A53 NXP i.MX 8M Plus

High Speed Interfaces

2x USB3.0, 2x GbE, PCIe, HDMI

Certified WiFi/BT

Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.4

Multimedia

1080p60 H265/H264 encode/decode, AI/ML acceleration, HD 2D/3D GPU

Temperature range

-40 to 85°C

Product Longevity

2035

Pin2pin Family

VAR-SOM Pin2Pin family

CPU Name

NXP i.MX 8M Plus

CPU Type

Cortex™-A53

CPU Cores

4 Cores

CPU Clock (Max)

Up to 1.8GHz

Real-time co-processor

800MHz Cortex-M7

DSP

HiFi4 DSP

Integer performance (DMIPS)

Up to 16,560

RAM

1 – 8 GB LPDDR4

eMMC

8 – 128 GB

Multimedia

2D/3D Graphics Acceleration

GC7000UL/ GC520L

Video Encode / Decode

1080p60 H.265/ H.264/ VP9/ VP8 Decoder, 1080p60 H.265/ H.264 Encoder

Camera Interfaces

2x MIPI CSI2

AI/ML

AI/ML NPU acceleration 2.3 TOPS

Image Signal Processor (ISP)

Yes

Display

HDMI

V2.0a up to 4Kp30

DSI

MIPI-DSI 1920×1080 24-bit

LVDS

Dual 1920×1080 24-bit

Touch controller

Resistive, Capacitive

Audio

Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

6 x I2S(SAI), S/PDIF RX TX, PDM 8CH

Line In/Out

Yes

Connectivity

SD / MMC

x1

USB Host / Device

USB 3.0/2.0 2x OTG

UART

x4, up to 5 Mbps

I2C

x5

SPI

x3

CAN Bus

x2 CAN/CAN-FD (Flexible Data-Rate)

RTC

On carrier

JTAG

x1

QSPI

X1

PCI-Express

Gen 3.0

Networking

Ethernet

2x 10/100/1000 Mbps (1x Ethernet with TSN support)

Wi-Fi

Rev.1: Certified Wi-Fi 5 dual-band 802.11 ac/a/b/g/n
Rev.2: Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

Rev.1: BT/BLE 5.2
Rev.2: BT/BLE 5.4

Linux

Yocto, Debian, Boot2Qt

Android

Yes

FreeRTOS

Yes

Mechanical Specifications

Dimensions (W x L)

67.8 x 33mm

Electronic Specifications

Supply voltage

3.3V

Digital I/O voltage

3.3V

Environmental Specifications

Commercial operating temperature

0 to 70°C

Extended operating temperature

-25 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

VAR-SOM-MX8M-PLUS V1

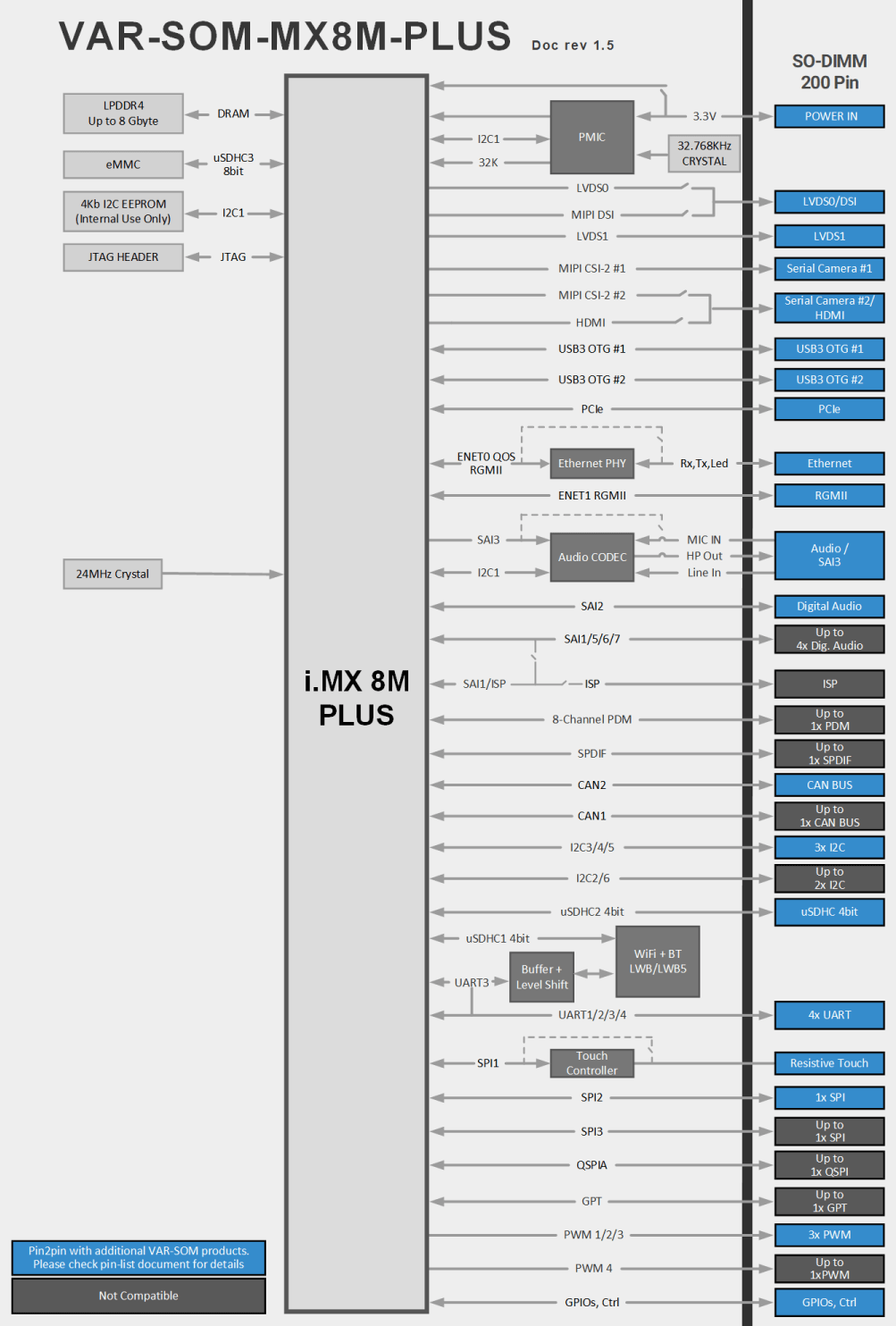

VAR-SOM-MX8M-PLUS_BD Diagram
VAR-SOM-MX8M-PLUS V2
VAR-SOM-MX8MP V2.x Block Diagram Diagram
VAR-SOM-MX8M-PLUS_BD Diagram
VAR-SOM-MX8MP V2.x Block Diagram Diagram
VAR-SOM-MX8MP[x]_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WB[D]]_[DSI]_[CSI2]_[SAI1]_[QSPI]_[X]T

MX8MP[x]:

i.MX 8M-Plus cores: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT grade), 1600MHz: 1600C (ET/IT grade)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[TP]:

Resistive touch panel controller

[WB[D]]

Rev1 WiFi/BT:
WB: Built-in certified Wi-Fi 4 single band 802.11 b/g/n + BT/BLE 5.1
WBD: Built-in certified Wi-Fi 5 dual band 802.11ac/a/b/g/n + BT/BLE 5.2

[DSI]

Default: Dual LVDS (#0 and #1)
DSI: DSI output instead of LVDS #0

[CSI2]

Default: Single CSI2 input with HDMI output
CSI2: Dual CSI2 inputs without HDMI output

[SAI1]

Default: GPIO1 pins available
SAI1: SAI1 instead of GPIO1 pins

[QSPI]

Default: HDMI audio (eARC)
QSPI: QSPIA lanes instead of HDMI audio (eARC)

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

VAR-SOM-MX8MP[x]_V2_[xxxx]C_[xxxx]R_[xx]G_[AC]_[EC]_[TP]_[WBD/ WBE]_[DSI]_[CSI2]_[SAI1]_[QSPI/SDEX]_[X]T

MX8MP[x]:

i.MX 8M-Plus cores: Quad : [Q]

[xxxx]C:

CPU clock speed: 1800MHz: 1800C (CT grade), 1600MHz: 1600C (ET/IT grade)

[xxxx]R:

LP-DDR4: 1024 MB: 1024R, 2048 MB: 2048R, 4096 MB: 4096R, 8192 MB: 8192R

[xx]G:

eMMC: 8 GB : 8G, 16 GB : 16G, 32 GB : 32G, 64 GB : 64G, 128 GB : 128G

[AC]:

Audio Codec

[EC]:

GbE PHY

[TP]:

Resistive touch panel controller

[WBD/WBE]

Rev2 WiFi/BT:
WBD: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.4
WBE: Built-in certified Wi-Fi 6 dual band 802.11ax/ac/a/b/g/n + BT/BLE 5.4 + 802.15.4

[DSI]

Default: Dual LVDS (#0 and #1)
DSI: DSI output instead of LVDS #0 [DSI]

[CSI2]

Default: Single CSI2 input with HDMI output
CSI2: Dual CSI2 inputs without HDMI output

[SAI1]

Default: GPIO1 pins available
SAI1: SAI1 instead of GPIO1 pins

[QSPI/SDEX]

Default: HDMI audio (eARC)
QSPI: QSPIA lanes instead of HDMI audio (eARC)
SDEX: extra SDIO port, available only when no WBD/WBE is selected

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

Note: All options in [brackets] are optional add-ons that can be either removed or selected from a list of options

VAR-SOM-MX8M-PLUS Evaluation Kits

I development kit e starter kit VAR-SOM-MX8M-PLUS possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni. I kit forniscono un’ottima indicazione delle funzioni di connettività di VAR-SOM-MX8M-PLUS e della sua performance.
