DART-MX95 :
NXP i.MX95

Coming Soon

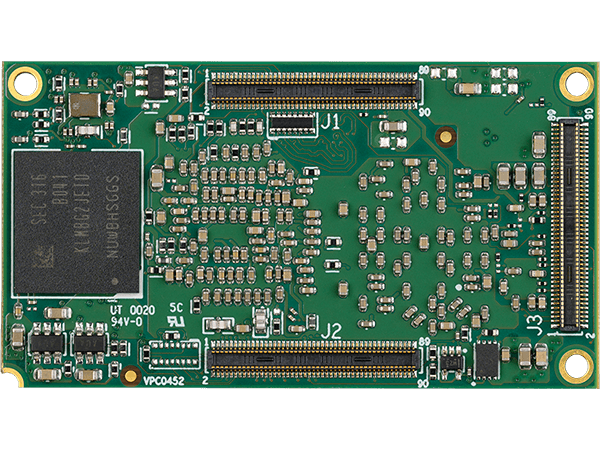

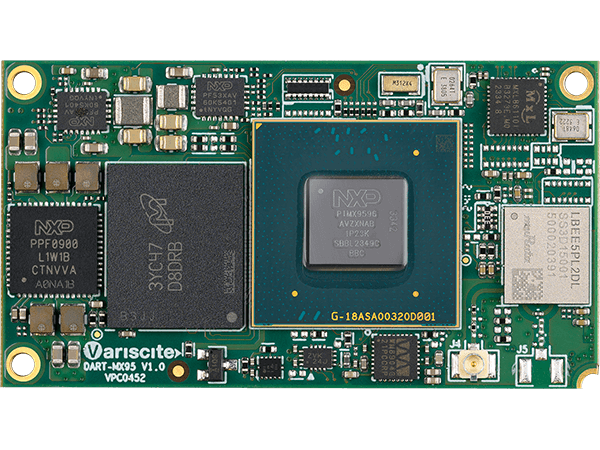

Designed for powerful edge platforms, this iMX95 based System on Module / Computer on Module boasts an impressive combination of features including high performance, high-end graphics, AI/ML capabilities, advanced security and safety functions, and a rich set of high-speed connectivity options.

The DART-MX95 is powered by the NXP i.MX95 SoC, which implements an energy flex architecture based on multiple heterogeneous processing units including up to 6 cores 2.0GHz Arm Cortex®-A55 plus two independent real-time co-processors: a 800MHz Arm Cortex-M7 and an 250MHz Arm Cortex-M33. This unique multi-core architecture offers high-speed data processing alongside high-performance real-time and safety/low-power uses.

The SoM additionally offers an extensive suite of connectivity and interface options. certified Wi-Fi 6 dual-band 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.3, dual GbE + 10GbE, an integrated NPU a powerful 2D/3D GPU, 4K encode/decode, 4K displays, dual camera, dual PCIe Gen 3.0, USB 3.0, CAN FD, and industrial temperature grade support.

Read More

The DART-MX95 SoM is a member of Variscite’s DART Pin2Pin product family, which offers wide scalability: from the i.MX8M Mini, through the i.MX8M and iMX8M Plus, to i.MX 95.

The complete list of Variscite Pin2Pin SoM products is available on Variscite Pin2Pin System on Module families webpage.

* The Pin2Pin compatibility depends on pinmux options; please verify the detailed pinout table in the related SoM to confirm compatibility is maintained in your specific design.

​** Variscite’s iMX95 System on Module (SoM) is at the early access stage. The information on this page is subject to change without notice.

Read Less
  • iso 9001:2015
  • iso 14001:2015
  • iso 13485:2016
  • platinum partner nxp

Specifiche

CPU

Up to 6x 2.0GHz Arm Cortex-A55 + 800MHz Arm Cortex-M7 + 250MHz Arm Cortex-M33

High Speed Interfaces

1x USB3.0/2.0 + 1x USB2.0, 2x GbE + 10GbE, 2x PCIe

Certified WiFi/BT

Wi-Fi 6 802.11 ax/ac/a/b/g/n with optional 802.15.4 and BT/BLE 5.3

Dimensions

Only 55 x 30 mm

Multimedia

AI/ML acceleration, 2D/3D GPU, 4K UltraHD decode/encode and display

Temperature range

-40 to 85°C

Product Longevity

2039

Pin2pin Family

DART Pin2Pin family

CPU Name

NXP i.MX 95

CPU Type

Cortex™-A55

CPU Cores

6 core

CPU Clock (Max)

Up to 2.0GHz

Real-time co-processor

800 MHz Cortex-M7
333Mhz Cortex-M33

RAM

4 – 16GB LPDDR5

eMMC

8 – 128 GB

Multimedia

2D/3D Graphics Acceleration

3D GPU with OpenGL® ES 3.2, Vulkan® 1.2, OpenCL™ 3.0
2D GPU

Video Encode / Decode

4Kp30 H.265 and H.264 encode and decode

Camera Interfaces

2x MIPI CSI2

AI/ML

AI/ML NPU acceleration 2 TOPS

Image Signal Processor (ISP)

Yes

Display

DSI

MIPI-DSI 4kp30 or 3840x1440p60

LVDS

Dual 1920×1080 24-bit

Touch controller

Resistive, Capacitive

Audio

Headphone driver

Yes

Microphone

Digital, Analog (stereo)

Digital audio serial interface

5 x I2S(SAI),S/PDIF,RX TX, PDM 8CH, MQS

Line In/Out

Yes

Connectivity

SD / MMC

x1

USB Host / Device

USB 3.0/2.0 1x OTG; USB 2.0 1x OTG

UART

x8

I2C

x7

I3C

X1

SPI

x8

CAN Bus

x5

RTC

On carrier

JTAG

X1

QSPI

X1

PCI-Express

X2 Gen 3.0

ADC

x8

Networking

Ethernet

2x 10/100/1000 Mbps (2x Ethernet with TSN support)
1x 10 Gbps (Ethernet with TSN support)

Wi-Fi

Certified Wi-Fi 6 dual-band 802.11ax/ac/a/b/g/n with optional 802.15.4

Bluetooth

BT/BLE5.3

Linux

Yocto, Debian

Android

Yes

FreeRTOS

Yes

Mechanical Specifications

Dimensions (W x L)

55.0 x 30.0 mm

Electronic Specifications

Supply voltage

3.4V- 5V

Digital I/O voltage

3.3V/1.8V

Environmental Specifications

Commercial operating temperature

0 to 70°C

Extended operating temperature

-25 to 85°C

Industrial operating temperature

-40 to 85°C

Storage temperature

-40 to 85°C

Storage humidity

5% to 95%

DART-MX95 Block diagram Diagram

DART-MX95[x]_[xxxx]C_[xx]R_[xx]G_[AC]_[EC]_[WBD/WBE]_[DSCM]_[ADC]_[CMP]_[X]T

MX95[x]

i.MX 95 cores: 6 Cores: H

[xxxx]C

CPU clock speed: 2000MHz: 2000C, 1800MHz: 1800C

[xx]R

LP-DDR5: 4GB: 4R, 8GB: 8R, 16GB: 16R

[xx]G

eMMC: 8GB: 8G, 16GB: 16G, 32GB: 32G, 64GB: 64G, 128GB: 128G

[AC]:

Audio Codec

[EC]:

GbE PHY on first ethernet port

[WBD/WBE]

WBD:
Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.3
WBE:
Built-in certified single band Wi-Fi 802.11 ax/ac/a/b/g/n + BT/BLE 5.3 + 802.15.4

[DSCM]

Default: Dual LVDS (#0 and #1) plus DSI

DSCM: LVDS #0, DSI in pin2pin compatible mode instead of LVDS #1

[ADC]

Export ADC lines

[CMP]

Instead of power pins, J3.15/27/34/63 are not connected for compatibility with other DART SoMs

[x]T:

C : 0 to 70°C, E: -25 to 85°C, I : -40 to 85°C

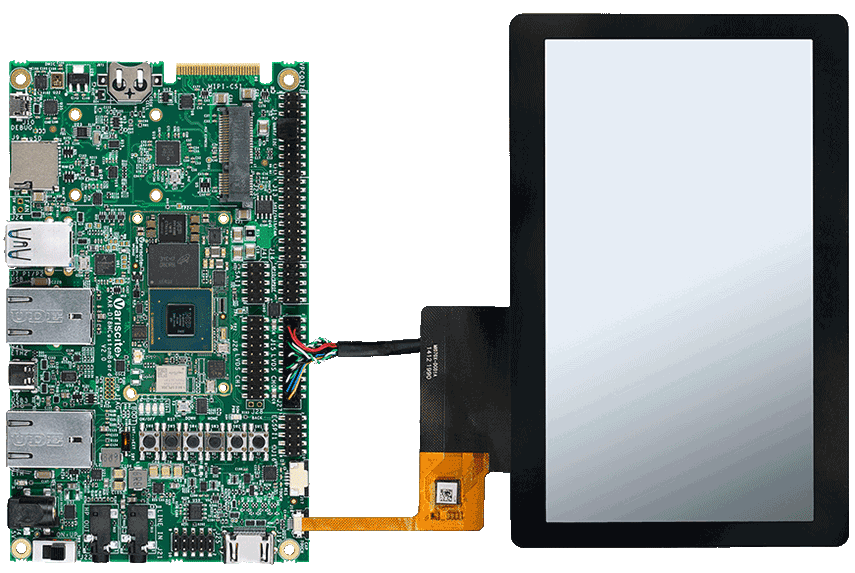

DART-MX95 Evaluation Kits

I development kit e starter kit DART-MX95 possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni. I kit forniscono un’ottima indicazione delle funzioni di connettività di DART-MX95 e della sua performance.

DART-MX95 Evaluation Kits
