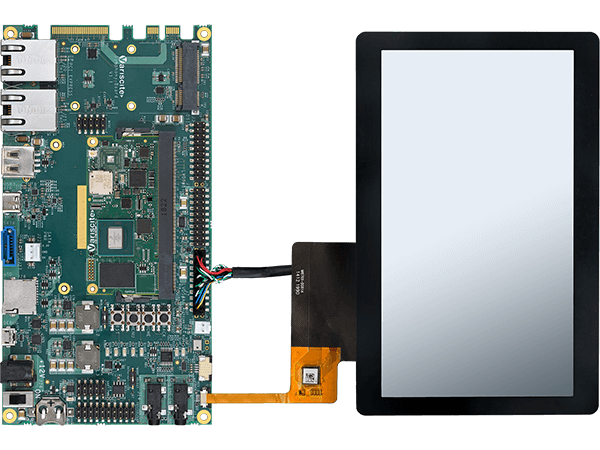

VAR-SOM-MX8M-PLUS Evaluation Kits
I development kit e starter kit VAR-SOM-MX8M-PLUS possono servire da piattaforme complete di sviluppo sia per scopi di valutazione che di sviluppo di applicazioni. I kit forniscono un’ottima indicazione delle funzioni di connettività di VAR-SOM-MX8M-PLUS e della sua performance.
Specifiche
 Starter Kit |  Development Kit | |
|---|---|---|
Included SOM | ||
Included Carrier Board | ||
Display | 7″ WVGA | |
Touch Panel | Capacitive | |
Micro-USB Debug Cable |
|
|
Ethernet Cable |
| |
12V Power Supply |
| |
Antenna |
|
|
Boot/Rescue SD Cards |
|
|
Carrier Board Design Package |
|
|
Part number | VAR-STK-VS8M-PLUS | VAR-DVK-VS8M-PLUS |
| VAR-SOM-MX8M-PLUS | |
|---|---|
System on Module | |
CPU Name | NXP i.MX8M Plus |
CPU Type | Cortex™-A53 |
CPU Cores | 4 |
CPU Clock | 1.8 GHz |
RAM | 4 GB LPDDR4 |
eMMC | 16 GB |
AI/ML | AI/ML NPU acceleration 2.3 TOPS |
Ethernet | 10/100/1000 Mbps |
Wi-Fi | Certified 802.11 ac/a/b/g/n |
Bluetooth | 5.2 / BLE |
HDMI | V2.0a up to 4Kp30 |
LVDS | 18-bit / 24-bit |
Audio codec | Yes |
OS support | Linux / Android |
Temperature | 0 to 70°C |
CAN Bus | x1 |
Part number | VAR-SOM-MX8MPQ_1800C_4096… |
| Symphony-Board | |
|---|---|
Carrier Board | |
SO-DIMM200 | Supporting the VAR-SOM-MX8M-PLUS |
HDMI | 2.0a |
LVDS | 18-bit / 24-bit |
Backlight Driver | PWM Control |
Resistive touch panel | 4-wire touch panel (4-pin FFC/FPC) |
Capacitive touch panel | Capacitive touch panel (6-pin FFC/FPC) |
Headphone | 3.5 mm connector |
Line – in | 3.5 mm connector |
Digital microphone | on-board |
PCI-Express | mini-PCIe connector |
SD-CARD | SD Card Socket |
CAN Bus | CAN/CAN-FD (Flexible Data-Rate) |
Ethernet | 2x 10/100/1000 Mbps, RJ45 |
| VAR-[STK / DVK]-VS8M-PLUS_[x]O | |
|---|---|
STK/DVK | STK: Starter kit |
[x]O | L: Linux, A: Android |
Documentazione
Reference Manuals
- Product Datasheet (doc v1.08)
- Quick Start Guide
Board Schematics
- Carrier Board Schematics (doc v1.21)
Certifications
